Pizzato Limit Switch FR Type 9 Adjustable Roller Notch Lever 56 Type FR 956 1 pc

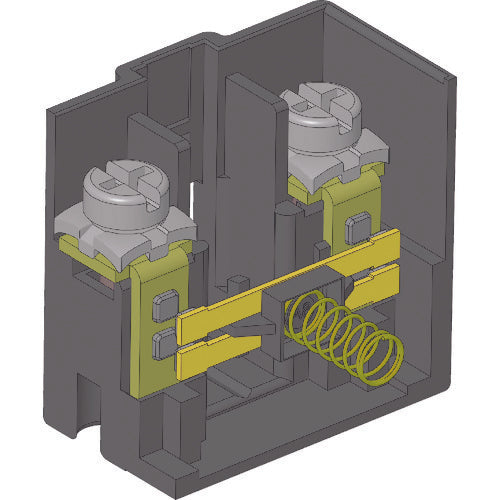

Catalogue number: FR 956 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and is flame retardant and shock absorbing. ●Twin bridge (two lines) mechanism, so even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Adjustable roller notch lever 56 type ●Contact configuration: 2NC ●Width (mm): 30.8 ●Height (mm): 104.5-163.5 ●Depth (mm): 30.8 ●Protection rating: IP67 ●2NC slow action positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
