POP Carreinut/M3, plate thickness 0.8 mm or more, S3-07 (2000 pieces) S3-07 1 box

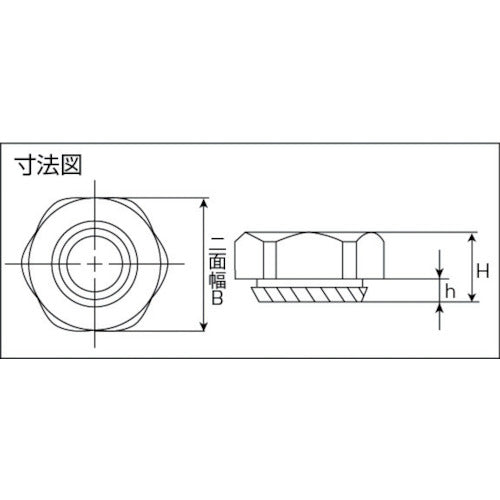

Catalog number: S3-07 Features: ●No special tools are required, and it can be easily installed using existing pneumatic and hydraulic press equipment. ●High installation strength. ●The unique neck shape reduces the pressure input and does not cause deformation of the base material. ●The other side of the nut is flat and does not protrude from the surface. Applications: ●Installation of nuts on thin plates or base materials that are difficult to weld. Specifications: ●Nominal diameter: M3 x 0.50 ●Hole diameter of workpiece (mm): 4.5 ●H x h (mm): 2.8 x 0.7 ●Minimum plate thickness (mm): 0.8 ●Two-sided width B (mm): 5.5 ●Conditions of use: Work hardness HV300 or less ●Drive-in nut (press-in by pressing) Material/Finish: ●Steel ●Surface treatment: Trivalent chromate finish
