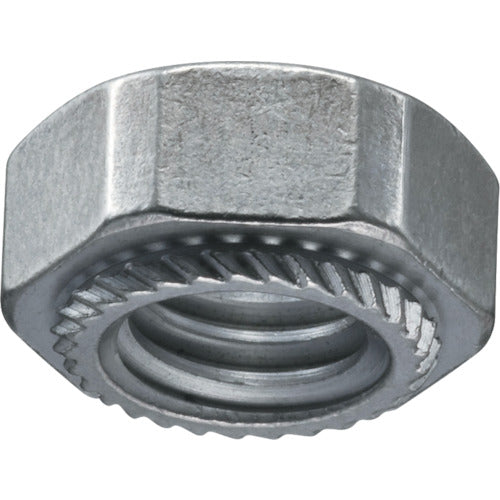

POP Carreinut/M4, plate thickness 1.0 mm or more, S4-09 (1000 pieces) S4-09 1 box

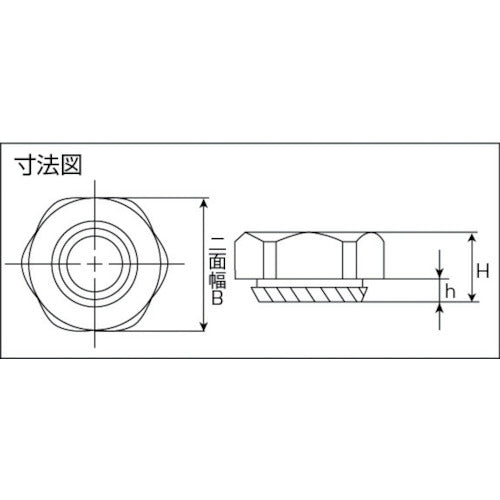

Catalog number: S4-09 Features: ●No special tools are required, and it can be easily installed using existing pneumatic and hydraulic press equipment. ●High installation strength. ●The unique neck shape reduces the pressure input and does not cause deformation of the base material. ●The other side of the nut is flat and does not protrude from the surface. Applications: ●Installation of nuts on thin plates or base materials that are difficult to weld. Specifications: ●Nominal diameter: M4 x 0.70 ●Hole diameter of workpiece (mm): 5.5 ●H x h (mm): 3.2 x 0.9 ●Two-sided width B (mm): 7 ●Minimum plate thickness (mm): 1.0 ●Conditions of use: Work hardness HV300 or less ●Drive-in nut (press-in by pressing) Material/Finish: ●Steel ●Surface treatment: Trivalent chromate finish
