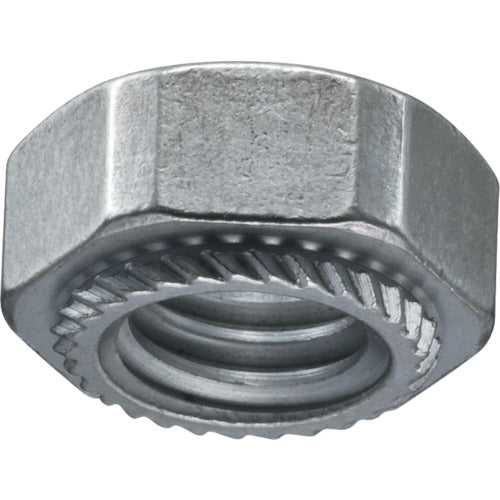

POP Carreinut/M8, plate thickness 2.0 mm or more, S8-19 (200 pieces) S8-19 1 box

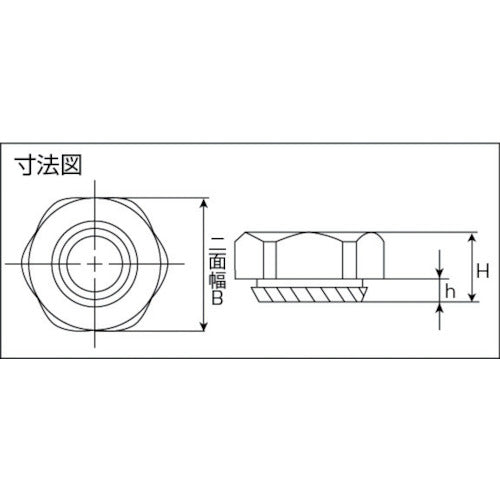

Catalog number: S8-19 Features: ●No special tools are required, and it can be easily installed using existing pneumatic and hydraulic press equipment. ●High installation strength. ●The unique neck shape reduces the pressure input and does not cause deformation of the base material. ●The other side of the nut is flat and does not protrude from the surface. Applications: ●Installation of nuts on thin plates or base materials that are difficult to weld. Specifications: ●Nominal diameter: M8 x 1.25 ●Hole diameter of workpiece (mm): 10.0 ●H x h (mm): 6.5 x 1.9 ●Two-sided width B (mm): 13 ●Minimum plate thickness (mm): 2.0 ●Conditions of use: Work hardness HV300 or less ●Drive-in nut (press-in by pressing) Material/Finish: ●Steel ●Surface treatment: Trivalent chromate finish
