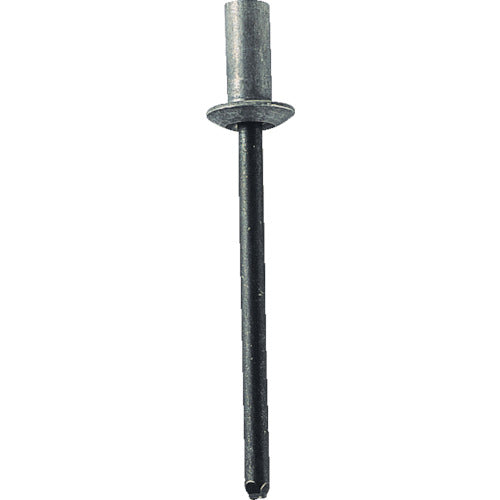

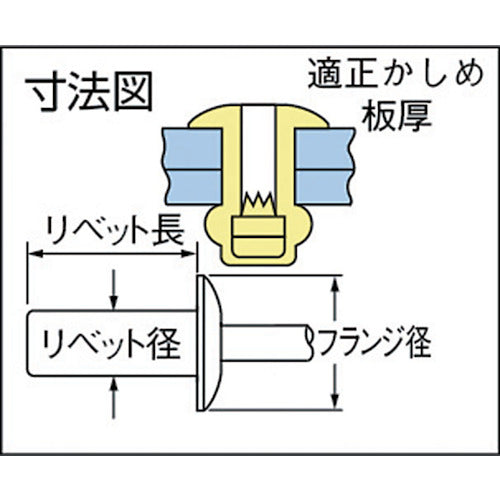

Catalogue number: AD42 Features: ● The rivet part is formed in a cap shape and has no through hole, so it has a high shielding effect. ● After fastening, the mandrel head is held inside the rivet and will not fall off. Applications: ● For areas that require watertightness, such as electrical sheet metal, roofs, and truck bodies. Specifications: ● Crimping plate thickness (mm): 1.6 to 3.2 ● Rivet length (mm): 7.6 ● Flange diameter (mm): 6.0 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3 ● Shear load (N): 1120 ● Tensile load (N): 1580 ● Boxed Material/Finish: ● Rivet body (flange): Aluminum (A5056) ● Mandrel (shaft): Steel (hard steel wire)
