POP Pop Nut Knurled Type Small Flange (M5) (1000 pieces) SFH-515-SF RLT 1 box

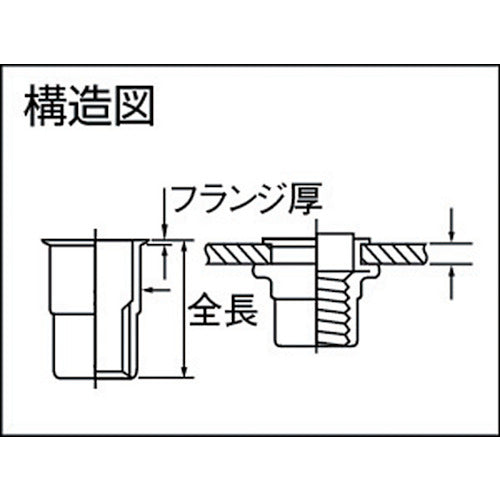

Catalog number: SFH-515-SF RLT Features: ● Fastening is completed on one side. Design can be simplified even for complex base material shapes and pipe materials. ● The outer surface of the nut body is knurled, and the knurled part bites into the back of the base material, providing high strength. ● No need for hot working: Even first-time workers can install it quickly and securely. ● Can be installed even after surface treatment (can be installed in the final process). Applications: ● Automobiles: door switches, roof antennas, bumpers, etc. ● Electrical: server racks, lighting fixtures, etc. ● Building materials and general: exteriors, massage chairs, etc. Specifications: ● Crimping plate thickness (mm): 0.5 to 1.5 ● Pilot hole diameter (mm): 7.1 ● Compatible thread: M5 x 0.8 ● Nut outer diameter (mm): 7 ● Total length (mm): 11 ● Flange thickness (mm): 0.5 ● Boxed ● Up to M4 to M8 ● Base material thickness: t0.5 to t4.0 (varies depending on each size) Material/Finish: ● Steel (SWCH)
