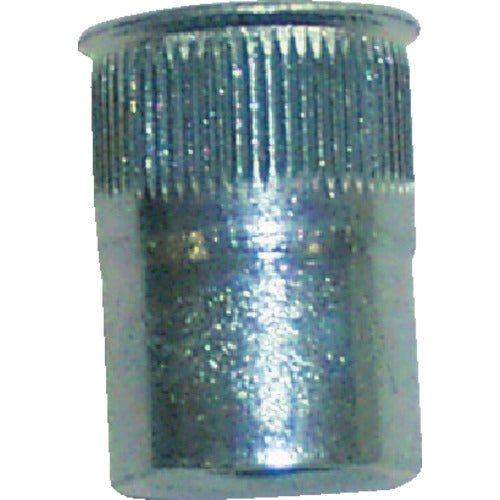

POP Pop Nut Knurled Type Small Flange (M6) (1000 pieces) SFH-625-SF RLT 1 box

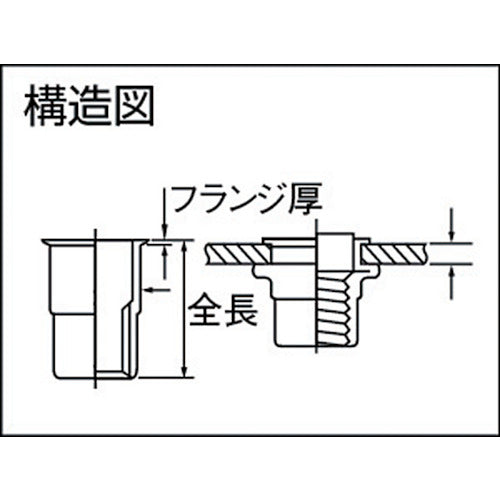

Catalog number: SFH-625-SF RLT Features: ● Fastening is completed on one side. Design can be simplified even for complex base material shapes and pipe materials. ● Knurling is applied to the outer surface of the nut body, and the knurled part bites into the back of the base material, resulting in high strength. ● No need for hot refining: Even first-time workers can install it quickly and securely. ● Can be installed even after surface treatment (can be installed in the final process). Applications: ● Automobiles: door switches, roof antennas, bumpers, etc. ● Electrical: server racks, lighting fixtures, etc. ● Building materials and general: exteriors, massage chairs, etc. Specifications: ● Crimping plate thickness (mm): 0.5 to 2.5 ● Pilot hole diameter (mm): 9.1 ● Compatible thread: M6 x 1.0 ● Nut outer diameter (mm): 9 ● Total length (mm): 14 ● Flange thickness (mm): 0.5 ● Boxed ● Up to M4 to M8 ● Base material thickness: t0.5 to t4.0 (varies depending on each size) Material/Finish: ● Steel (SWCH)
