POP High Pressure HR Rivet (All Iron) φ3.2, SD42HR (1000 pieces) SD-42-HR 1 box

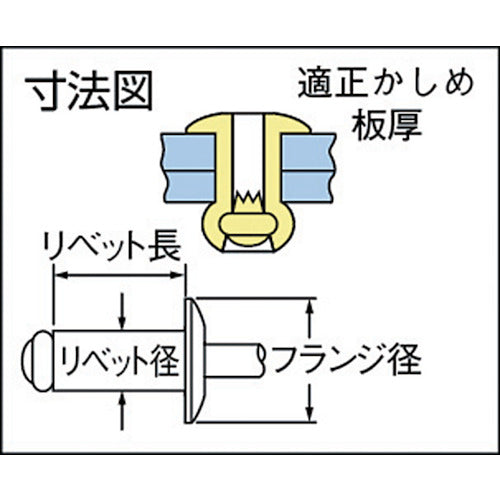

Catalog number: SD-42-HR Features: ● This rivet can generate a high crimping force between base materials. ● The buckling diameter is wide, so high tensile strength can be obtained even with thin base materials. Applications: ● Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 1.6 to 3.2 ● Rivet length (mm): 11.2 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.4 ● Reference shear strength (N): 1450 ● Reference tensile strength (N): 1700 ● Box quantity (pieces): 1000 Materials/Finish: ● Rivet body (flange): Steel (SWCH) ● Mandrel (shaft): Steel
