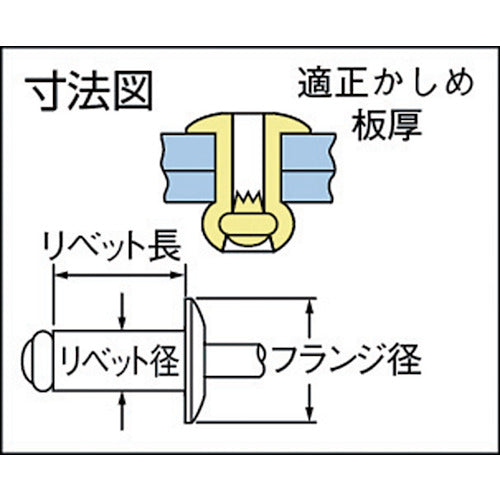

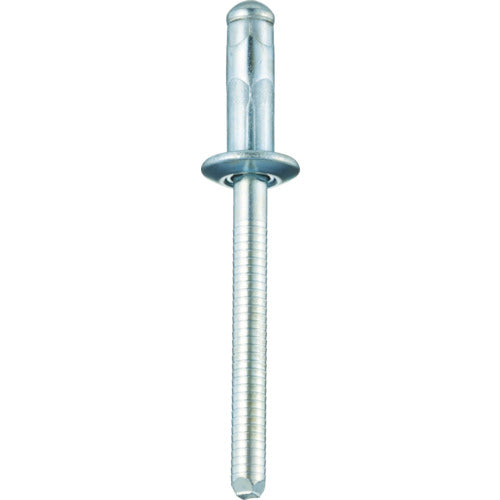

Catalog number: SD-52-HR Features: ● This rivet can generate a high crimping force between base materials. ● The buckling diameter is wide, so high tensile strength can be obtained even with thin base materials. Applications: ● Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 1.6 to 3.2 ● Rivet length (mm): 12.5 ● Flange diameter (mm): 8 ● Rivet diameter (mm): 4 ● Pilot hole diameter (mm): 4.2 ● Reference shear strength (N): 2000 ● Reference tensile strength (N): 2600 ● Number per box (pieces): 1000 Materials/Finish: ● Rivet body (flange): Steel (SWCH) ● Mandrel (shaft): Steel
