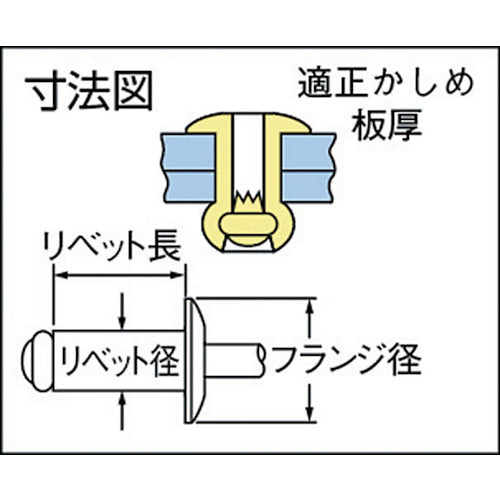

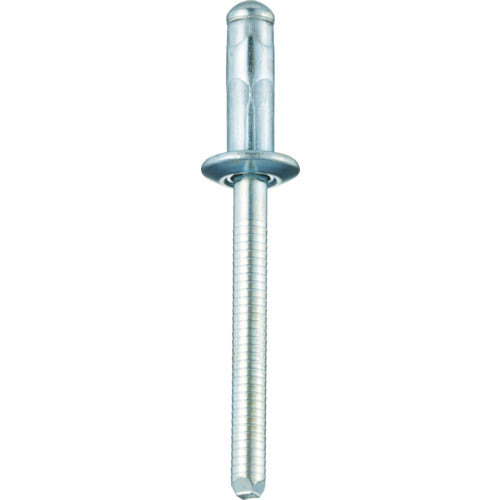

Catalog number: SD-83-HR Features: ● This rivet can generate a high crimping force between base materials. ● The buckling diameter is wide, so high tensile strength can be obtained even with thin base materials. Applications: ● Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 1.2 to 4.8 ● Rivet length (mm): 16 ● Flange diameter (mm): 13 ● Rivet diameter (mm): 6.4 ● Pilot hole diameter (mm): 6.6 ● Reference shear strength (N): 3900 ● Reference tensile strength (N): 5350 ● Number per box (pieces): 1000 Materials/Finish: ● Rivet body (flange): Steel (SWCH) ● Mandrel (shaft): Steel
