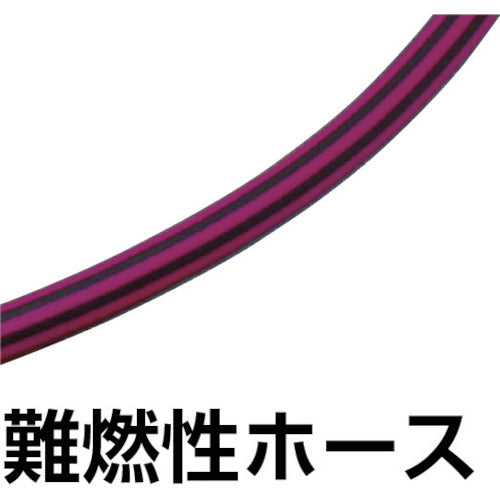

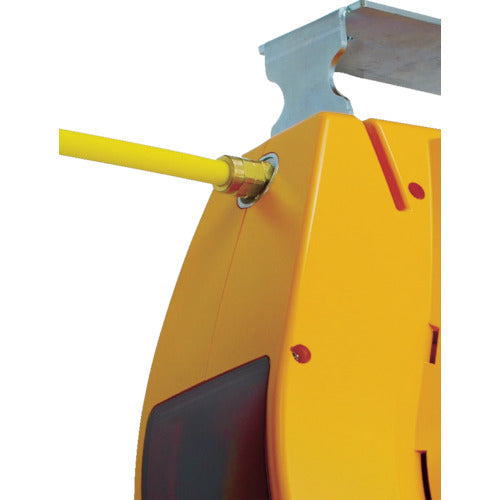

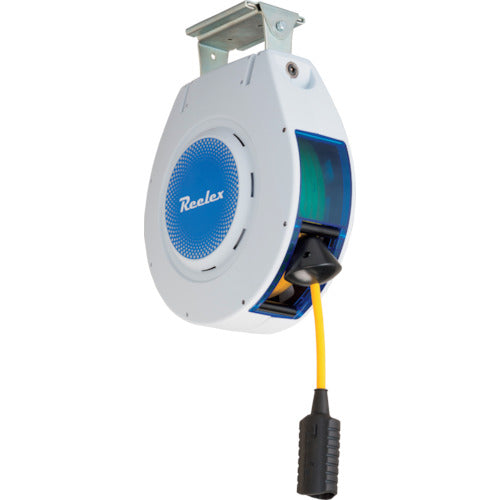

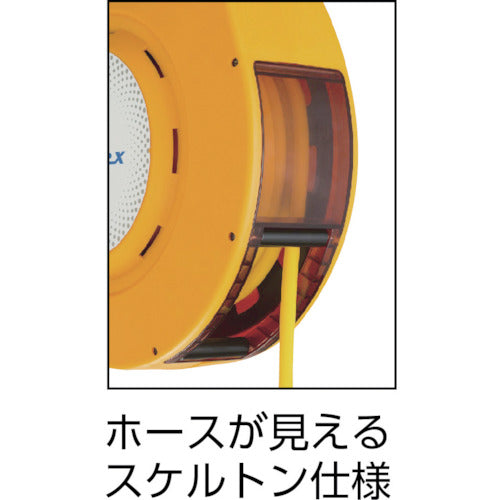

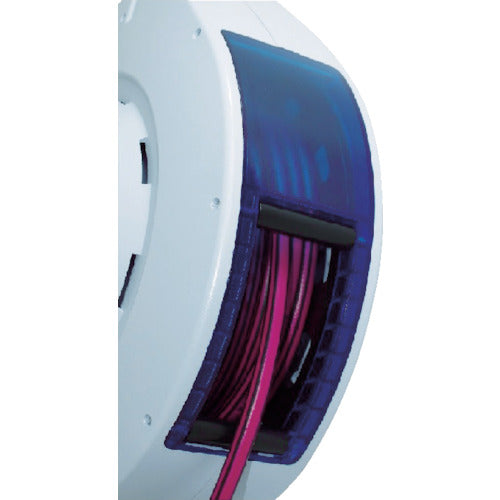

Catalog number: NAR-612GR Features: *The silent ratchet that can be stopped anywhere allows for extremely quiet pulling and winding of the hose. *The air intake system allows the hose to be connected without fixed piping. *The cover in the center of the main unit can be removed to easily replace the hose. *The head can be rotated 90° left and right. Uses: ●Air supply to various air tools Specifications: ●Inner diameter x outer diameter of hose (mm): 6.5 x 10.0 ●Total length of hose (m): 12 ●Primary side mounting: Rc1/4 ●Secondary side mounting: With socket coupler ●Primary side total length of hose (m): 1 ●Secondary side total length of hose (m): 12 ●Maximum operating pressure (MPa): 1.47 ●Width (mm): 140 ●Depth (mm): 300 ●Height (mm): 380 ●Color: Gray ●Operating pressure: 1.47MPa Material/Finish: ●Body: Resin ●Hose: Polyurethane (with blade) Set contents/Accessories: ●Primary side hose ASSY 1m (with plug coupler) ●Mounting plate, fixing bolts and nuts ●Socket
