RUD Eyenut Star VRM M10 VRM-M10 1 piece

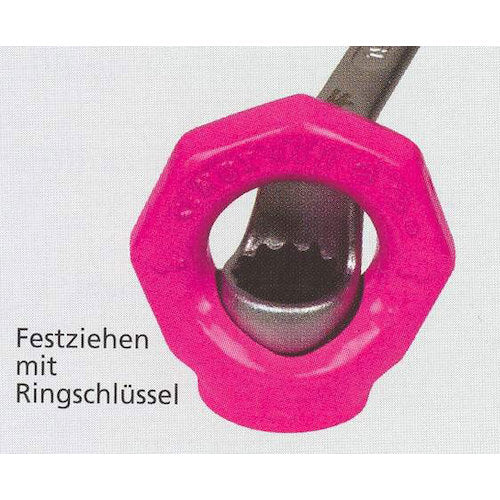

Catalog number: VRM-M10 Features: ● A commercially available wrench can be used for installation. ● A rotating eye nut that can handle loads in all directions. ● Even when connected to a bolt, the ring part rotates 360 degrees in the load direction, so it can handle lateral loads that were prohibited with conventional eye nuts. ● Comes with a RUD ID point (RFID chip), which can be identified by its unique chip number when using a RUD IC reader. ● Available in eight sizes from M6 to M30. Applications: ● The threaded part is a nut type, so it can be connected to a bolt on the other side for lifting heavy objects. Specifications: ●Basic load capacity (t): 0.4 ●Screw diameter: M10 ●D (mm): 25 ●L (mm): 20 ●H (mm): 30 ●A (mm): 14 ●B (mm): 11 ●Dimension (mm) J: 12 ●Dimension (mm) B: 11 ●Dimension (mm) H: 28 ●Dimension (mm) K: 16 ●Dimension (mm) D: 25 ●Safety factor 4 times Material/Finish: ●Nickel chrome molybdenum steel
