RUD Eyenut Star VRM M16 VRM-M16 1 piece

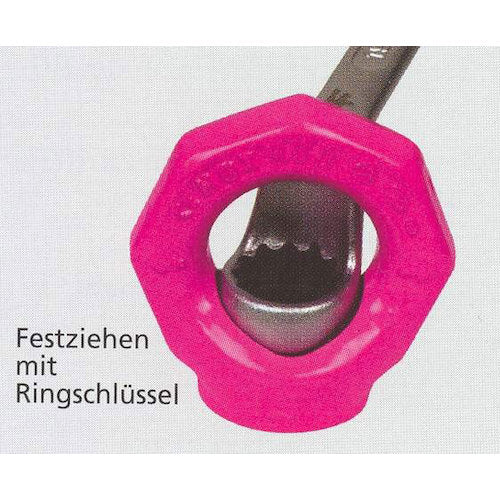

Catalog number: VRM-M16 Features: ●A commercially available wrench can be used for installation. ●A rotating eye nut that can handle loads in all directions. ●Even when connected to a bolt, the ring part rotates 360 degrees in the load direction, so it can handle lateral loads that were prohibited with conventional eye nuts. ●Comes with a RUD ID point (RFID chip), and can be identified by its unique chip number when using a RUD IC reader. ●Available in eight models ranging from M6 to M30. Applications: ●Since the threaded part is a nut type, it can be connected to a bolt on the other side for lifting heavy objects. Specifications: ●Basic load capacity (t): 1.5 ●Screw diameter: M16 ●D (mm): 36 ●L (mm): 30 ●H (mm): 40 ●A (mm): 21 ●B (mm): 15 ●Dimension (mm) J: 19 ●Dimension (mm) K: 22 ●Dimension (mm) H: 40 ●Dimension (mm) D: 35 ●Dimension (mm) B: 15 ●Safety factor 4 times Material/Finish: ●Nickel chrome molybdenum steel
