RUD Eyenutstar VRM M20 VRM-M20 1 piece

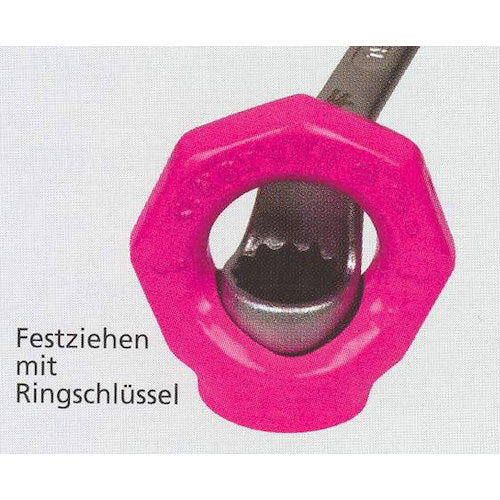

Catalog number: VRM-M20 Features: ●A commercially available wrench can be used for installation. ●A rotating eye nut that can handle loads in all directions. ●Even when connected to a bolt, the ring part rotates 360 degrees in the load direction, so it can handle lateral loads that were prohibited with conventional eye nuts. ●Comes with a RUD ID point (RFID chip), and can be identified by its unique chip number when using a RUD IC reader. ●Available in eight models ranging from M6 to M30. Applications: ●Since the threaded part is a nut type, it can be connected to a bolt on the other side for lifting heavy objects. Specifications: ●Basic load capacity (t): 2.3 ●Screw diameter: M20 ●D (mm): 40 ●L (mm): 37 ●H (mm): 50 ●A (mm): 23 ●B (mm): 17 ●Dimension (mm) J: 24 ●Dimension (mm) K: 29 ●Dimension (mm) H: 50 ●Dimension (mm) D: 40 ●Dimension (mm) B: 17 ●Safety factor 4 times Material/Finish: ●Nickel chrome molybdenum steel
