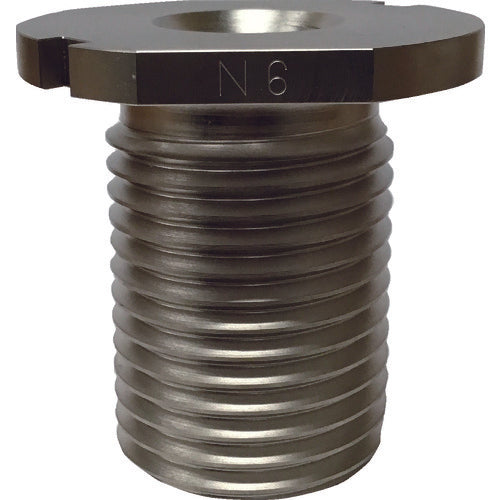

RUD Eyebolt Conversion Adapter AP M48/M100 AP-M48/M100 1 piece

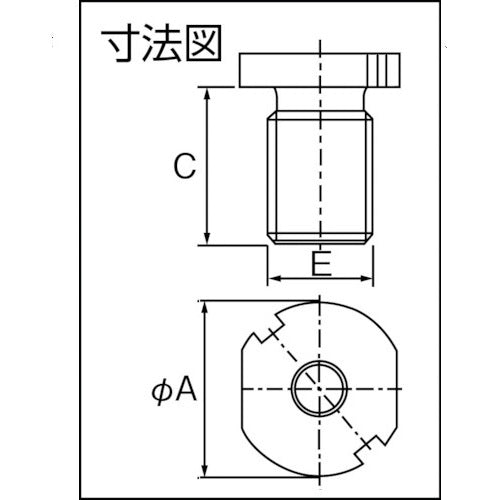

Catalog number: AP-M48/M100 Features: ●Uses existing female threads to change lifting point size. ●The load capacity is the same as the attached lifting point. ●We recommend using a thread loosening prevention agent such as Loctite. Specifications: ●Bolt size: M48/M100 ●Total length (mm): 120 ●Neck length (mm): 140 ●Hole diameter (mm): M100 ●A (mm): 120 ●B (mm): 105 ●D (mm): M48 ●T (mm): 10 ●Dimension (mm) A: 120 ●Dimension (mm) B: 105 ●Dimension (mm) C: 140 ●Dimension (mm) D: M48 ●Dimension (mm) E: M100 ●Dimension (mm) T: 10 Note: ●The conversion adapter can only be used with RUD lifting points. Connection with products from other companies is not covered by the warranty.
