RUD Eyebolt Conversion Adapter ASPA M16/M8 ASPA-M16/M8 1 piece

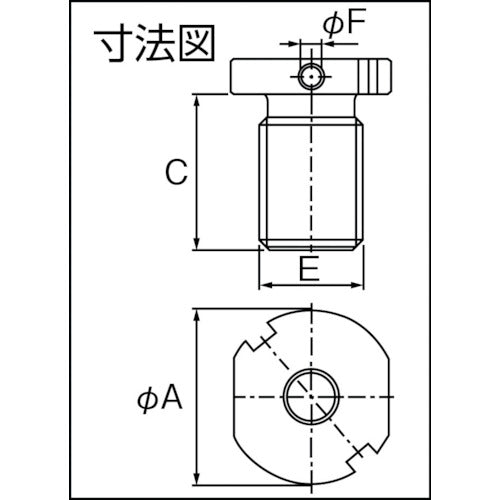

Catalog number: ASPA-M16/M8 Features: ●Uses existing female threads to change lifting point size. ●The load capacity is the same as the lifting point it is attached to. ●We recommend using a thread loosening prevention agent such as Loctite. Specifications: ●Bolt size: M16/M8 ●Total length (mm): 35 ●Neck length (mm): 20 ●Hole diameter (mm): M16 ●A (mm): 35 ●B (mm): 30 ●D (mm): M8 ●T (mm): 8 ●Dimension A (mm): 35 ●Dimension B (mm): 30 ●Dimension C (mm): 20 ●Dimension D (mm): M8 ●Dimension E (mm): M16 ●Dimension F (mm): 5 ●Dimension G (mm): 6 ●Dimension T (mm): 8 ●Internal thread D: M8 ●External thread E: M16 Material/Finish: ●Nickel chrome molybdenum steel Note: ●The conversion adapter can only be used with RUD lifting points. Connection with products from other companies is not covered by the warranty.
