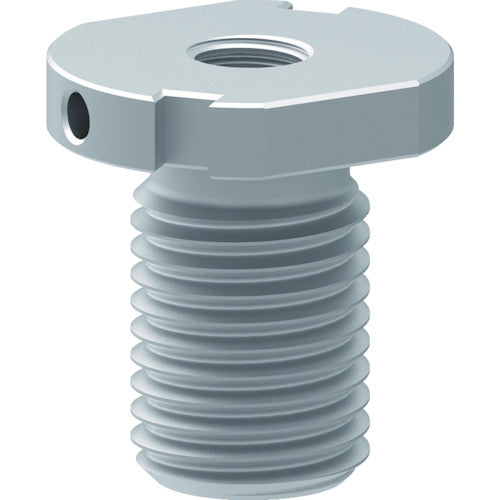

RUD Eyebolt Conversion Adapter ASPA M48/M24 ASPA-M48/M24 1 piece

Catalog number: ASPA-M48/M24 Features: ●Uses existing female threads to change lifting point size. ●The working load is the same as the attached lifting point. ●We recommend using a thread loosening prevention agent such as Loctite. Specifications: ●Bolt size: M48/M24 ●Total length (mm): 82 ●Neck length (mm): 58 ●Hole diameter (mm): M48 ●A (mm): 82 ●B (mm): 70 ●D (mm): M24 ●T (mm): 16 ●Dimension (mm) A: 82 ●Dimension (mm) B: 70 ●Dimension (mm) C: 58 ●Dimension (mm) D: M24 ●Dimension (mm) E: M48 ●Dimension (mm) F: 8 ●Dimension (mm) G: 10 ●Dimension (mm) T: 16 ●Internal thread D: M24 ●External thread E: M48 Material/Finish: ●Nickel chrome molybdenum steel Note: ●The conversion adapter can only be used with RUD lifting points. Connection with products from other companies is not covered by the warranty.
