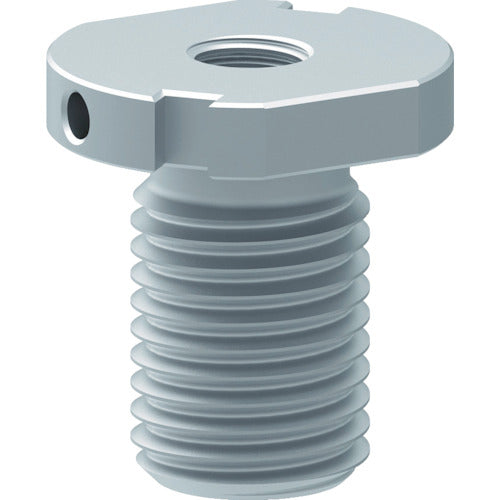

RUD Eyebolt Conversion Adapter ASPA M56/M30 ASPA-M56/M30 1 piece

Catalog number: ASPA-M56/M30 Features: ●Uses existing female threads to change lifting point size. ●The working load is the same as the attached lifting point. ●We recommend using a thread loosening prevention agent such as Loctite. Specifications: ●Bolt size: M56/M30 ●Total length (mm): 100 ●Neck length (mm): 67 ●Hole diameter (mm): M56 ●A (mm): 100 ●B (mm): 90 ●D (mm): M30 ●T (mm): 16 ●Dimension (mm) A: 100 ●Dimension (mm) B: 90 ●Dimension (mm) C: 67 ●Dimension (mm) D: M30 ●Dimension (mm) E: M56 ●Dimension (mm) F: 8 ●Dimension (mm) G: 10 ●Dimension (mm) T: 16 ●Internal thread D: M30 ●External thread E: M56 Material/Finish: ●Nickel chrome molybdenum steel Note: ●The conversion adapter can only be used with RUD lifting points. Connection with products from other companies is not covered by the warranty.
