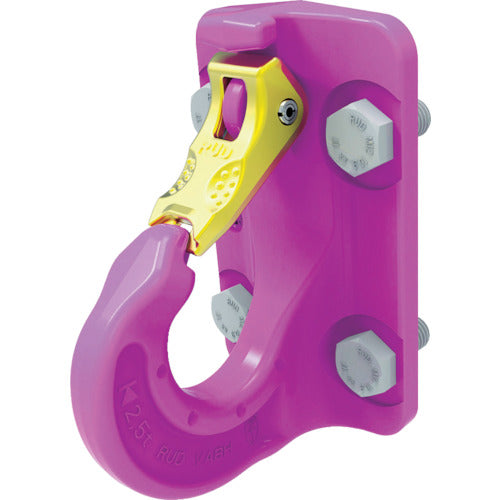

RUD Excavator Hook Bolt Type VABH-B-1.5T VABH-B-1.5T 1 piece

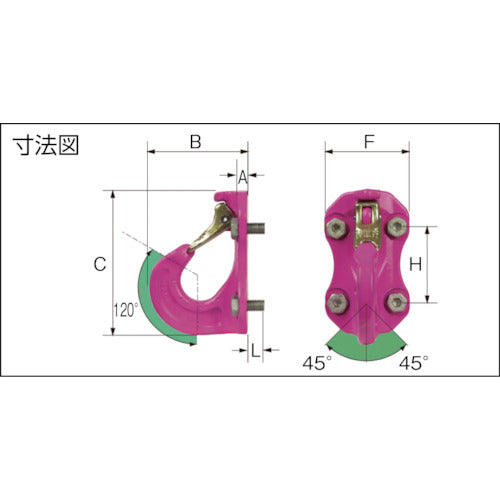

Catalog number: VABH-B-1.5T Features: * Bolt type or welded type can be attached and used as a lifting point when transporting machinery. * Comes with a RUD ID point (RFID chip), which can be identified by the unique chip number when using a RUD IC reader. Applications: * Used for lifting molds, precision and machine tools, and heavy objects. Specifications: ●Basic load capacity (t): 1.5 ●Bolt size: M10 ●Dimension (mm) A: 7.5 ●Dimension (mm) B: 76 ●Dimension (mm) C: 111 ●Dimension (mm) D: 4 x M10 ●Dimension (mm) F: 70 ●Dimension (mm) G: 48 ●Dimension (mm) H: 60 ●Dimension (mm) K: 15 ●Dimension (mm) L: 13.5 ●Latch: With forged latch ●Dimension (mm) MW: 25 ●Dimension (mm) I: 38 ●Usable dimension (mm) hole diameter: 4 x M10 ●Can be used in a 120° range compared to conventional products Material/Finish: ●Nickel chrome molybdenum steel
