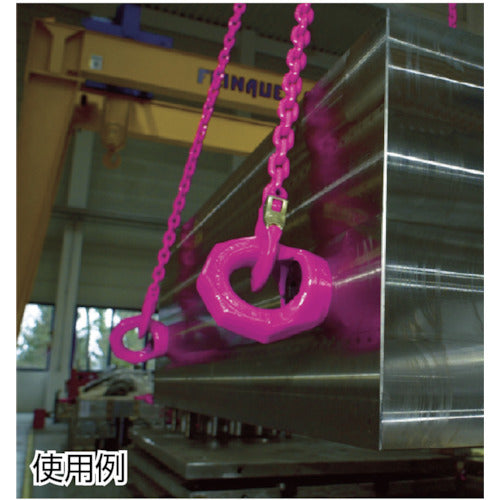

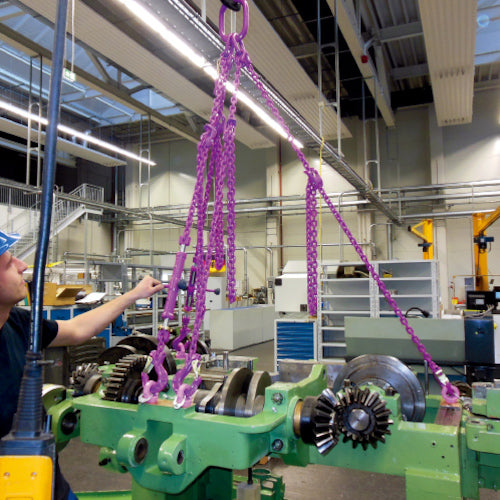

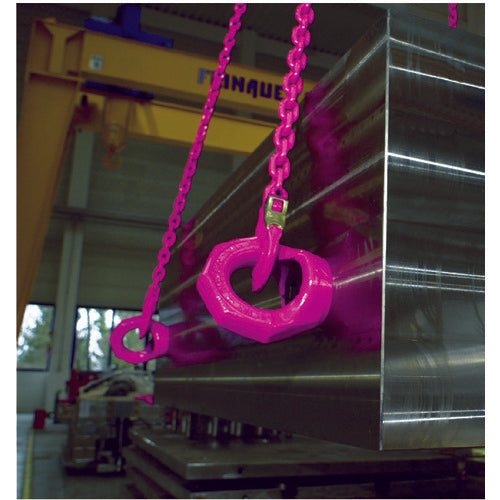

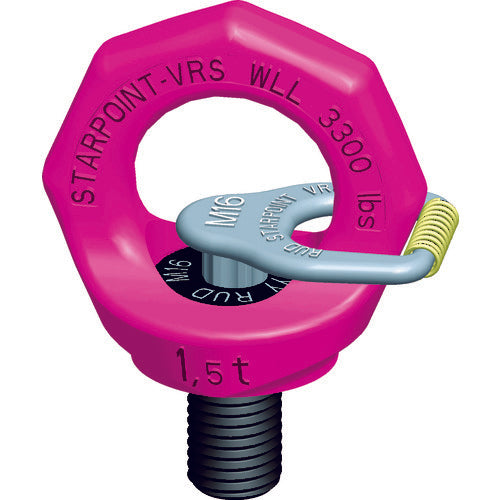

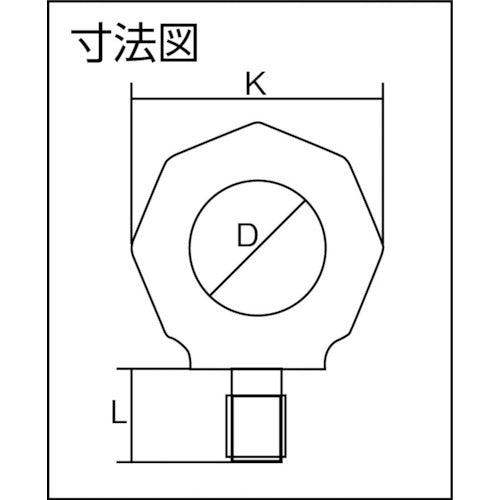

Catalog number: VRS-F-M42 Features: ●You can now safely perform horizontal lifting work with eye bolts, which was previously impossible. ●The main body rotates 360 degrees in the load direction without the bolts loosening. ●CE mark certified product, can be installed on molds for overseas use. ●High strength and compact design. ●Seamless ring for strength. ●Patented surface coating with pink powder that changes color with ambient temperature. ●Using a conversion adapter (sold separately), it can handle up to M100 female threads. ●Comes with a RUD ID point (RFID chip), which can be identified by its unique chip number when using a RUD IC reader. Applications: ●Used for lifting heavy objects such as molds, wind power, civil engineering, shipbuilding, precision and machine tools, and transportation. Specifications: ●Basic load capacity (t): 9 ●Load capacity (kN): 84 ●Bolt size: M42 ●Total length (mm): 158 ●Neck length (mm): 63 ●Dimension (mm) D: 84 ●Dimension (mm) K: 158 ●Dimension (mm) L: 63 ●Safety factor 4 times Material/Finish: ●Nickel chrome molybdenum steel
