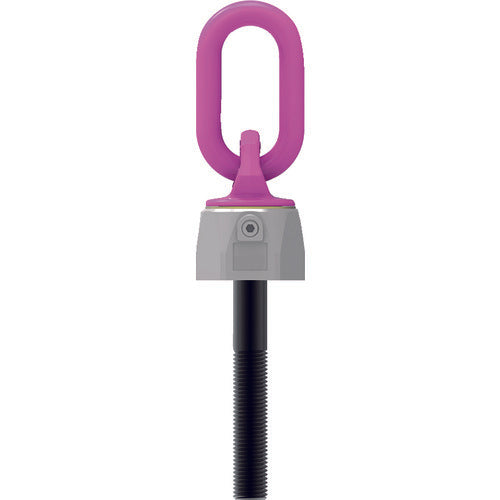

RUD Vario Ring Long Bolt Type VWBG M14L VWBG-M14L 1 piece

Catalog number: VWBG-M14L Features: ●Smooth rotation even under load. ●Loads can be applied in all directions. ●Single ball bearing type. ●CE mark certified, can be installed on molds for overseas use. ●Surface treatment with pink powder, body is plated. Applications: ●For use in molds, precision and machine tools, lifting heavy objects and inversion work. Specifications: ●Basic load capacity (t): 1 ●Bolt size: M14 ●Total length (mm): 274 ●Neck length (mm): 14-160 ●Hole diameter (mm): M14 ●Spanner size (mm): 41 ●A (mm): 13 ●B (mm): 46 ●D (mm): 48 ●Dimension (mm) A: 13 ●Dimension (mm) C: 38 ●Dimension (mm) E: 114 ●Dimension (mm) F: 160 ●Dimension (mm) φF: 160 ●Smooth rotation possible even under load ●Used for molds, precision and machine tools, lifting heavy objects and inverting operations Material/Finish: ●Nickel chrome molybdenum steel
