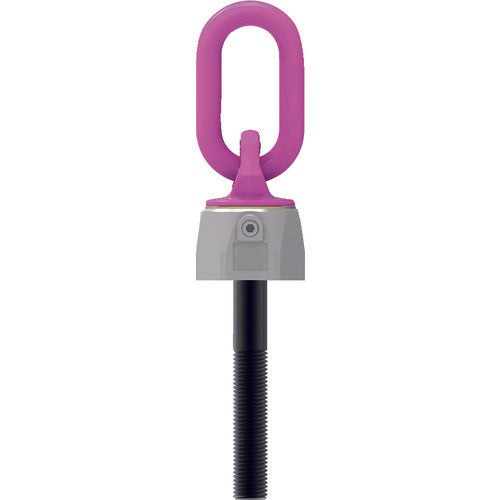

RUD Vario Ring Long Bolt Type VWBG M30L VWBG-M30L 1 piece

Catalog number: VWBG-M30L Features: ●Smooth rotation even under load. ●Loads can be applied in all directions. ●Single ball bearing type. ●CE mark certified, can be installed on molds for overseas use. ●Surface treatment with pink powder, body is plated. ●Comes with a RUD ID point (RFID chip), which can be identified by its unique chip number when using a RUD IC reader. Applications: ●For use in molds, precision and machine tools, lifting heavy objects, and inversion work. Specifications: ●Basic load capacity (t): 5 ●Bolt size: M30 ●Total length (mm): 551 ●Neck length (mm): 30-330 ●Hole diameter (mm): M30 ●Spanner size (mm): 85 ●A (mm): 22 ●B (mm): 90 ●D (mm): 99 ●Dimension (mm) A: 22 ●Dimension (mm) C: 50 ●Dimension (mm) E: 221 ●Dimension (mm) F: 330 ●Dimension (mm) J: 23 ●Smooth rotation possible even under load ●Used for molds, precision and machine tools, lifting heavy objects and inverting operations Material/Finish: ●Nickel chrome molybdenum steel
