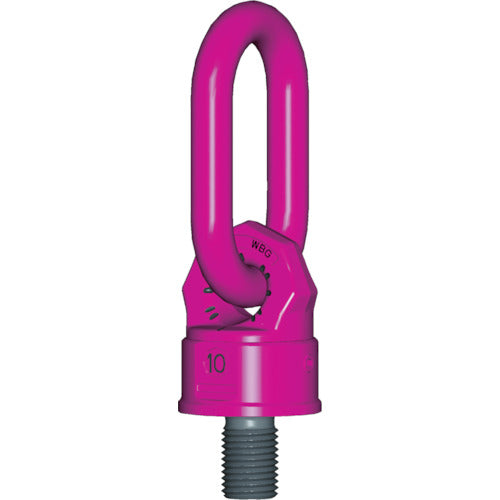

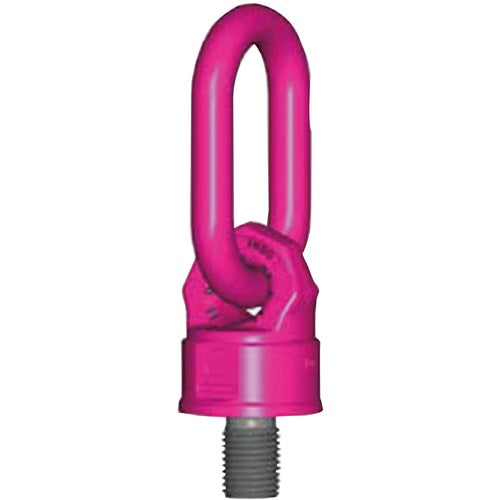

RUD Vario Ring VWBG M64 VWBG-M64 1 piece

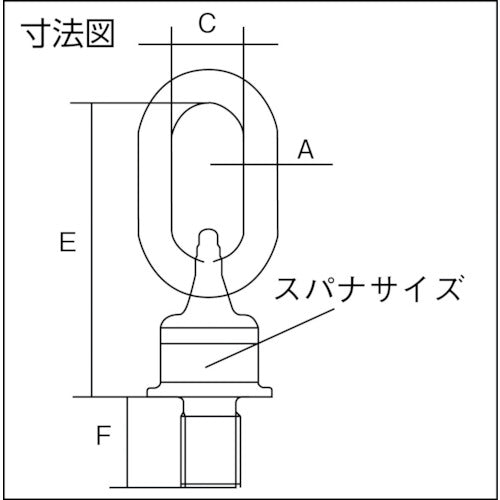

Catalog number: VWBG-M64 Features: ●Smooth rotation even under load. ●Loads can be applied in all directions. ●Single ball bearing type. ●CE mark certified, can be installed on molds for overseas use. ●Surface treatment with pink powder, body is plated. Applications: ●Used for hoisting and inverting molds, precision and machine tools, and heavy objects. Specifications: ●Basic load capacity (t): 16 ●Load capacity (kN): 32 ●Bolt size: M64 ●Total length (mm): 70 ●Neck length (mm): 94 ●Hole diameter (mm): 271 ●Spanner size (mm): 95 ●Dimensions (mm) A: 32 ●Dimensions (mm) C: 70 ●Dimensions (mm) E: 271 ●Dimensions (mm) F: 94 Material/Finish: ●Nickel chrome molybdenum steel
