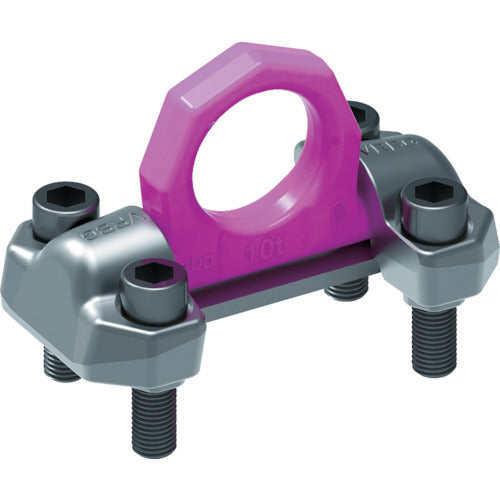

RUD Ring Shackle VRBG 10 VRBG-10 1 piece

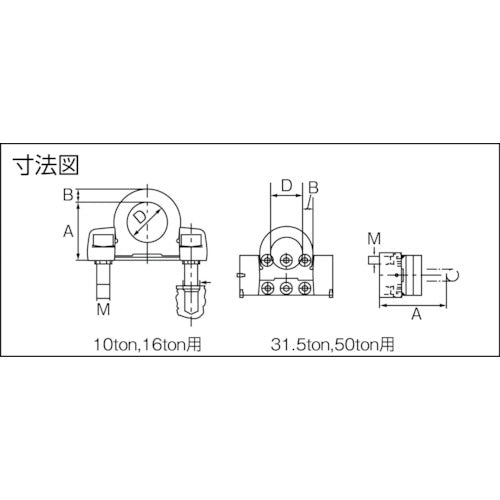

Catalog number: VRBG-10 Features: * The patented balance knob protects the fixing bolt from shear load. * The bolts used are all magnetically inspected. * Complies with the Machinery Directive 2006/42/EG. * Equipped with a D point (RFID chip), which can be identified by its unique chip number when using a RFID IC reader. Specifications: ●Basic load capacity (t): 10 ●Bolt size: M20 ●Dimension (mm) A: 103 ●Dimension (mm) B: 22 ●Dimension (mm) C: 6 ●Dimension (mm) D: 65 ●Dimension (mm) K: 213 ●Dimension (mm) L: 43 ●Dimension (mm) M: 20 ●Dimension (mm) E 0.5: 143 ●Dimension (mm) F 0.5: 78 ●Dimension (mm) G min.: 50 ●Dimension (mm) H H12: 30 ●Dimension (mm) J: 8 ●Dimension (mm) N: 120 ●Dimension (mm) O: 25 Material/Finish: ●Nickel chrome molybdenum steel
