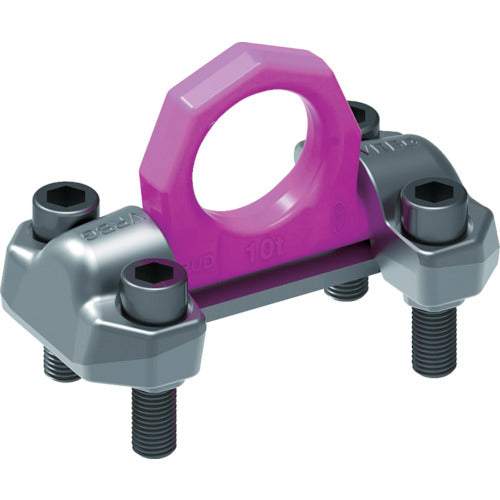

RUD Ring Shackle VRBG 16 VRBG-16 1 piece

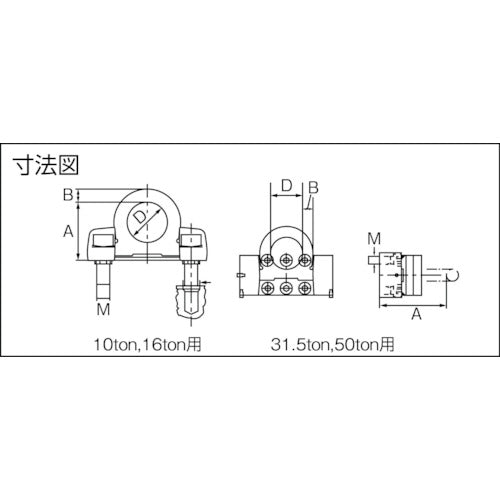

Catalogue number: VRBG-16 Features: ●The patented balance knob protects the fixing bolt from shear load. ●Bolts that have been 100% magnetically inspected are used. ●Complies with Machinery Directive 2006/42/EG. Specifications: ●Basic load (t): 16 ●Bolt size: M30 ●Dimension (mm) A: 131 ●Dimension (mm) B: 30 ●Dimension (mm) C: 8 ●Dimension (mm) D: 90 ●Dimension (mm) K: 270 ●Dimension (mm) L: 63 ●Dimension (mm) M: 30 ●Dimension (mm) E 0.5: 198 ●Dimension (mm) F 0.5: 104 ●Dimension (mm) G min.: 70 ●Dimension (mm) H H12: 46 ●Dimension (mm) J: 10 ●Dimension (mm) N: 170 ●Dimension (mm) O: 32 Material/Finish: ●Nickel chrome molybdenum steel
