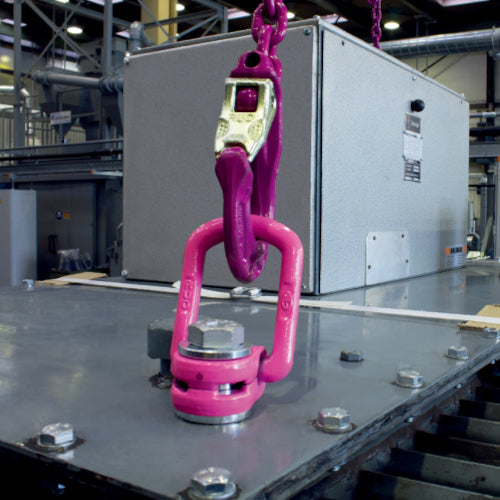

Catalog number: VLBG-PLUS-M42-10T Features: ●You can now safely perform horizontal eyebolt hanging work, which was previously impossible. ●The main body rotates 360° in the load direction without the bolt loosening. ●The use of ICE steel bolts makes it more durable against impact loads. (Up to M24) ●CE mark certified product that can be installed on molds for overseas use. ●High strength and compact design. ●Strong with seamless ring. ●Applied with patented surface coating that changes color depending on the ambient temperature. ●Can accommodate up to M100 female threads by using a conversion adapter (sold separately). Applications: ●Used to hang heavy objects such as molds, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, and transportation. Specifications: ●Basic load capacity (t): 10 ●Bolt size: M42 ●Spanner size (mm): 65 ●H (mm): 73 ●Dimension (mm) A: 77 ●Dimension (mm) B: 122 ●Dimension (mm) C: 82 ●Dimension (mm) F: 26.5 ●Dimension (mm) H: 73 ●Dimension (mm) T: 196 Material/Finish: ●ICE steel
