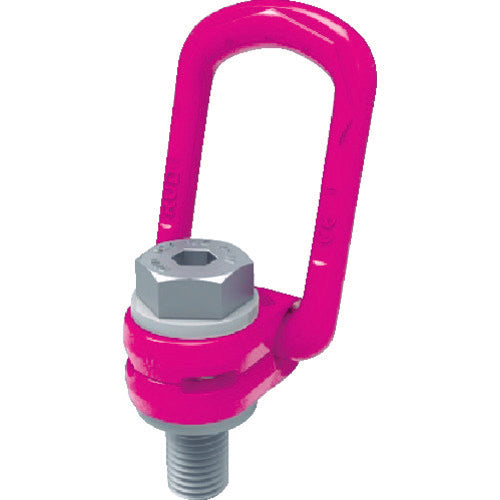

Catalog number: VLBG-PLUS-M8 Features: ●You can now safely perform horizontal eyebolt hanging work, which was previously impossible. ●The main body rotates 360° in the load direction without the bolt loosening. ●The use of ICE steel bolts makes it more durable against impact loads. (Up to M24) ●CE mark certified product, can be installed on molds for overseas use. ●High strength and compact design. ●Strong with seamless ring. ●Applied with patented surface coating that changes color depending on the ambient temperature. ●Can accommodate up to M100 female threads using a conversion adapter (sold separately). ●Comes with a RUD ID point (RFID chip), which can be identified by its unique chip number when using a RUD IC reader. Applications: ●Used to hang heavy objects such as molds, concrete (PC), wind power, civil engineering, shipbuilding, precision and machine tools, and transportation. Specifications: ●Basic load capacity (t): 0.63 ●Bolt size: M8 ●Spanner size (mm): 13 ●H (mm): 11 ●Dimension (mm) A: 30 ●Dimension (mm) B: 52 ●Dimension (mm) C: 34 ●Dimension (mm) F: 10 ●Dimension (mm) H: 11 ●Dimension (mm) T: 75 Material/Finish: ●ICE steel
