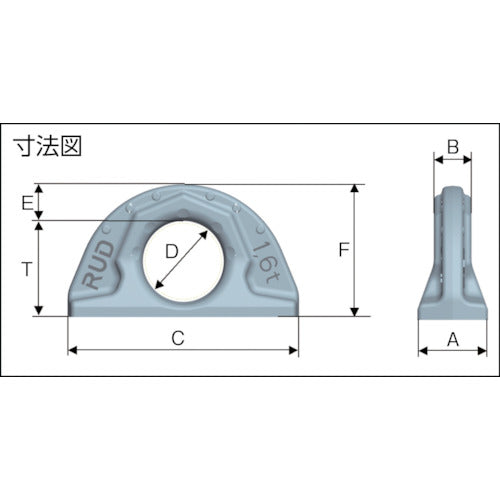

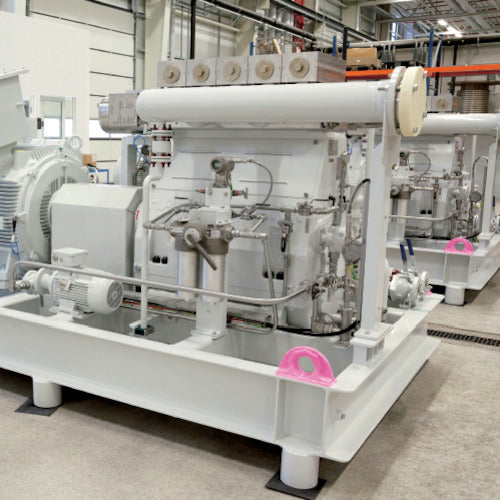

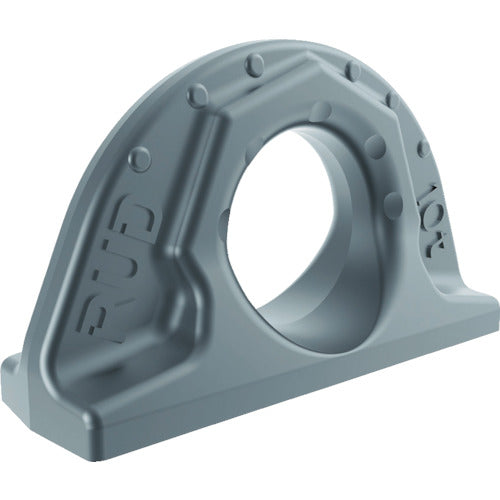

Catalogue number: ABA 1.6T Features: ● Loads can be applied in all directions. ● Can be directly connected to hooks. ● Safety factor of at least four times in all directions. ● 100% magnetic deep scratch tested. ● Wear inspection notches on the inside and outside of the ring. ● Equipped with a RUD ID point (RFID chip), which can be identified by its unique chip number when using a RUD IC reader. Applications: ● Used for lifting molds, precision and machine tools, and heavy objects. Specifications: ● Basic load capacity (t): 1.6 ● Dimensions (mm) A: 30 ● Dimensions (mm) B: 16 ● Dimensions (mm) C: 100 ● Dimensions (mm) D: 35 ● Dimensions (mm) E: 16 ● Dimensions (mm) F: 57 ● Dimensions (mm) T: 42 Material/Finish: ● Nickel chrome molybdenum steel
