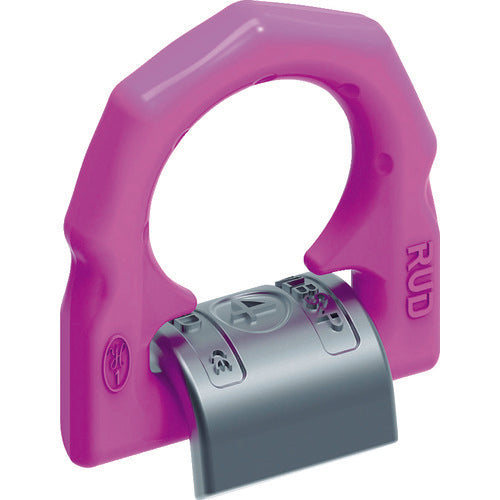

RUD Welded Load Ring VLBS-U-4 VLBS-U-4 1 piece

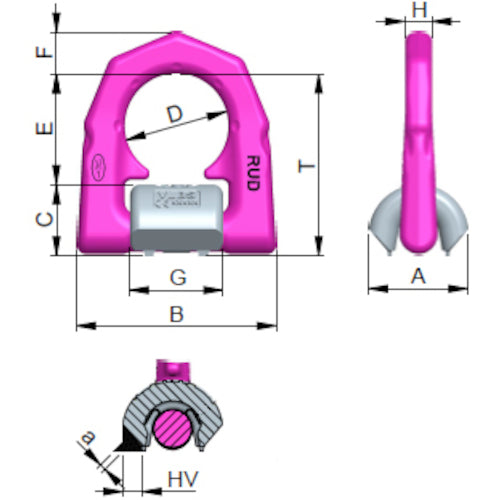

Catalog number: VLBS-U-4 Features: ●Easy and quick welding installation. ●Tension springs support the ring at the desired position and reduce noise. (1,5t to 10t) ●Complies with DIN 5688, quality grades 100 and 80, and 100% magnetic particle inspection has been passed. ●Spacer (approx. 3mm) functions as a gap material required for root welding. ●The placement of the weld seam (HV penetration type) allows the requirements of DIN 18800 to be met. In other words, the seam is completely shielded, so there is no risk of a corrosion layer forming, and it can be used outdoors. Specifications: ● Basic load capacity (t): 4.0 ● Dimension (mm) A: 42 ● Dimension (mm) B: 87 ● Dimension (mm) C: 51 ● Dimension (mm) D: 31 ● Dimension (mm) E: 52 ● Dimension (mm) F: 16 ​​● Dimension (mm) G: 46 ● Dimension (mm) H: 101 ● Dimension (mm) T: 83 ● Dimension (mm) I: 18 ● Welded seam: HY8+3 Material/Finish: ● Nickel chrome molybdenum steel ● Forged product made of St52.3 (1.0570) suitable for welding
