SAMSON PP, PU caster, fixed, 40mm, TP4015R-01-PLY, 1 piece

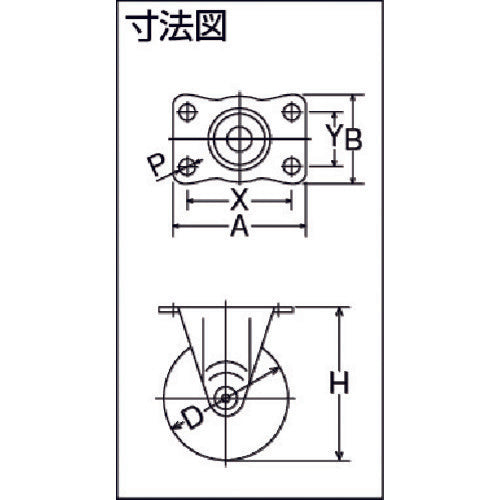

Catalogue number: TP4015R-01-PLY Features: ●Standard small caster that moves very smoothly. Applications: ●For transport equipment in hospitals, restaurants, etc. Specifications: ●Wheel diameter D (mm): 40 ●Type: Fixed type ●Allowable load (daN): 20 ●Allowable load (kgf): 20 ●Wheel width (mm): 18 ●Mounting height H (mm): 54 ●Mounting seat A (mm): 55 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 44 ●Mounting pitch Y (mm): 27 ●Mounting hole diameter P (mm): 4 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent zinc plating ●Wheels: Polypropylene (PP), polyurethane (PU)
