SAMSONG Spring Caster, Fixed 150mm, Load Capacity 360kg, TP6866R-PCI-BB, 1 piece

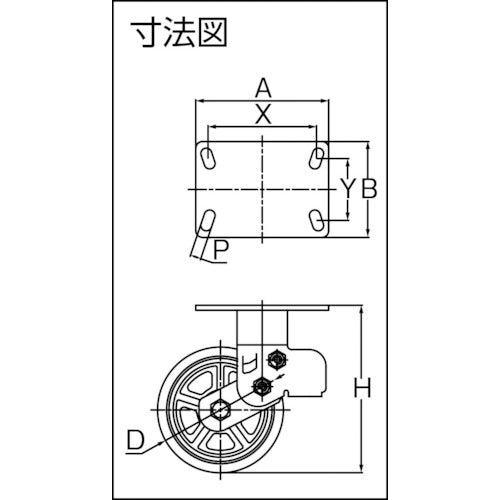

Catalogue number: TP6866R-PCI-BB Features: ● Rubber with added spring function is used, providing excellent cushioning and quietness. ● Caster for transport carts to prevent vibration and noise. Applications: ● Suitable for towing work on uneven surfaces. Specifications: ● Wheel diameter D (mm): 152 ● Type: Fixed type ● Set load (daN): 350 ● Set load (kgf): 357 ● Wheel width (mm): 50 ● Mounting height H (mm): 200 ● Mounting seat A (mm): 159 ● Mounting seat B (mm): 114 ● Mounting pitch X (mm): 125-133 ● Mounting pitch Y (mm): 62-86 ● Mounting hole diameter P (mm): 10 ● Allowable load (daN): 352.8 ● Allowable load (kgf): 360 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: Steel wheels, urethane
