SAMSONG Spring Caster, Fixed 150mm, Load Capacity 900kg, TP7561R-PCI-BB, 1 piece

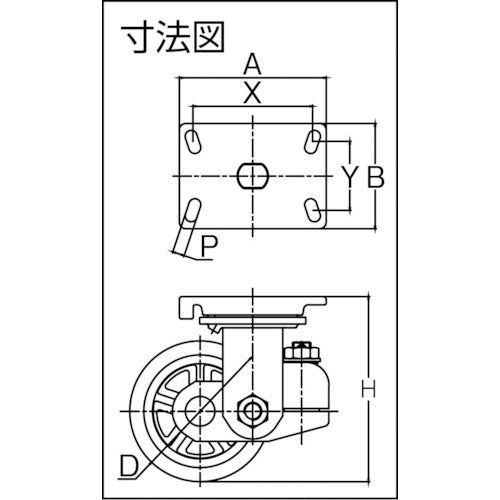

Catalogue number: TP7561R-PCI-BB Features: ●Spring-equipped ultra-heavy-duty silent cushioning caster. ●For transport carts and heavy object transport. ●Suitable for uneven towing work. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Set load (daN): 880 ●Set load (kgf): 898 ●Wheel width (mm): 70 ●Mounting height H (mm): 203 ●Mounting seat A (mm): 160 ●Mounting seat B (mm): 120 ●Mounting pitch X (mm): 130 ●Mounting pitch Y (mm): 84 ●Mounting hole diameter P (mm): 12 ●Allowable load (kgf): 900 ●Allowable load (daN): 882.0 ●Plate type ●Fixed type ●Double spring specifications Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent zinc plating ●Wheels: Steel wheels, urethane
