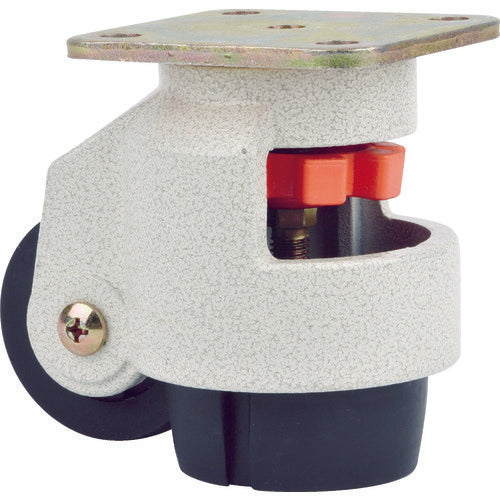

Catalog number: TPYJ100F Features: * A multipurpose caster with an adjuster that can adjust the height. Can be used for different loads. (50kgf to 1000kgf) Applications: * Suitable for leveling equipment, and for use as a movable, fixed, and vibration-proof unit. Specifications: ●Wheel diameter D (mm): 74 ●Type: Free-moving ●Permissible load (daN): 735 ●Permissible load (kgf): 750 ●Wheel width (mm): 32 ●Mounting height H (mm): 122 ●Mounting seat A (mm): 100.0 ●Mounting seat B (mm): 100.0 ●Mounting pitch X (mm): 70 ●Mounting pitch Y (mm): 70 ●Mounting hole diameter P (mm): 12.0 ●Rubber plate height adjustment length: 10 mm ●Swivel type ●Plate type Material/Finish: ●Body: Ductile cast iron ●Metal fittings: Aluminum, Surface treatment: Powder coating ●Wheels: Nylon (120F is MC nylon) ●Adjuster material: PU *TPYJ120F is a different material.
