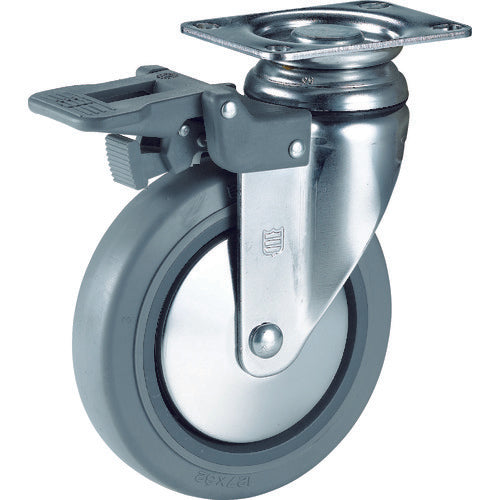

SAMSONG Medical Equipment Caster with Swivel SP, Elastomer, 75mm, TP8430-01-MIR-TG-SWB, 1 piece

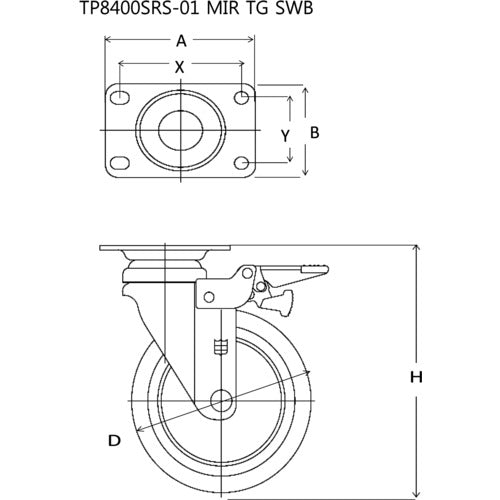

Catalog number: TP8430-01-MIR-TG-SWB Features: ●Material is less likely to mark the floor than rubber wheels. ●A caster ideal for sites where quietness and cleanliness are required. ●One-touch stopper mechanism that simultaneously locks the wheel and swivel parts with one movement. Specifications: ●Wheel diameter D (mm): 76 ●Type: Free-wheeling (with stopper) ●Allowable load (daN): 49 ●Allowable load (kgf): 50 ●Wheel width (mm): 32 ●Mounting height H (mm): 118 ●Mounting seat A (mm): 92 ●Mounting seat B (mm): 64 ●Mounting pitch X (mm): 75 ●Mounting pitch Y (mm): 45 ●Mounting hole diameter P (mm): 8.5 ●Free-wheeling (with stopper) ●Plate type Material/Finish: ●Hardware: Steel ●Hardware surface treatment: Trivalent zinc plating ●Wheels: Elastomer
