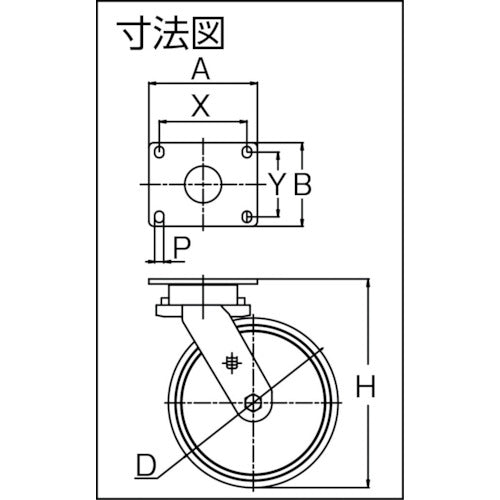

Catalog number: TP6688-PAL-PBB Features: ● When no load is applied, the wheels automatically return to a straight line. ● The casters have excellent starting performance and dust-proof and waterproof functions. ● The bearings are sealed, making this a maintenance-free type that does not require grease injection for bearing management. Applications: ● Suitable for automatic production rail lines Specifications: ● Wheel diameter D (mm): 203 ● Type: Swivel ● Allowable load (daN): 400 ● Allowable load (kgf): 408 ● Wheel width (mm): 50 ● Mounting height H (mm): 250.0 ● Mounting seat A (mm): 130 ● Mounting seat B (mm): 100 ● Mounting pitch X (mm): 77 ● Mounting pitch Y (mm): 105 ● Mounting hole diameter P (mm): 11 ● Plate type ● Swivel ● Heat-resistant temperature -25° to 90° Materials/Finish: ● Metal fittings: Steel ● Wheels: Aluminum wheels, heat-resistant urethane
