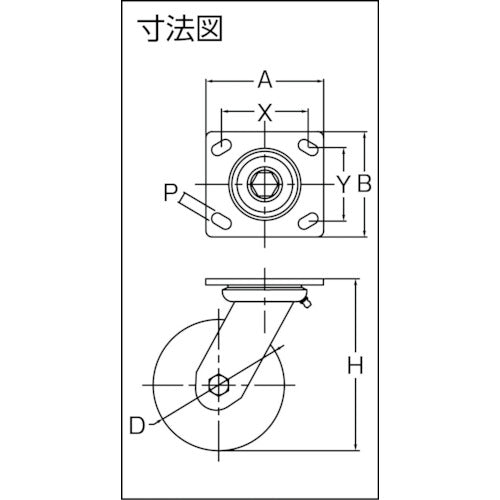

Catalog number: TP6660-MIR BB TG Features: ● A caster made of special moisture-resistant urethane material, with excellent water resistance and durability. ● Equipped with a swivel lock function that can be switched between fixed and swivel, and can be locked in four places every 90 degrees. Applications: ● Suitable for heavy load transport equipment. Specifications: ● Wheel diameter D (mm): 152 ● Type: Swivel type ● Allowable load (daN): 176 ● Allowable load (kgf): 180 ● Wheel width (mm): 50 ● Mounting height H (mm): 187 ● Mounting seat A (mm): 114 ● Mounting seat B (mm): 102 ● Mounting hole diameter P (mm): 10 ● Mounting pitch X x Y (mm): 92 x 67 (76 x 76) ● Plate type ● Swivel type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: PP wheels, rubber (with cover)
