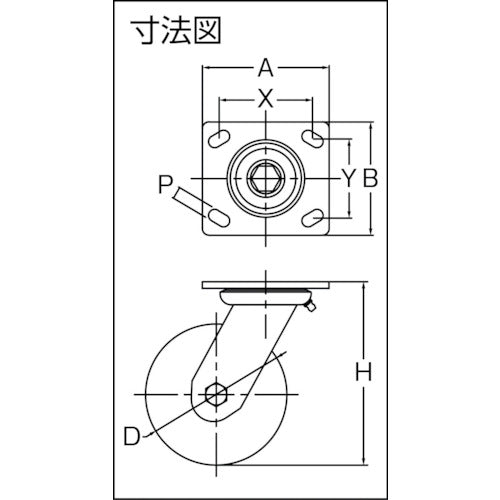

Catalog number: TP6680-PCI TG Features: ●Special moisture-resistant urethane material is used, making this caster water-resistant and durable. ●With a swivel lock function that can be switched between fixed and swivel, it can be locked at four points every 90 degrees. Applications: ●Suitable for heavy load transport equipment. Specifications: ●Wheel diameter D (mm): 203 ●Type: Swivel ●Allowable load (daN): 392 ●Allowable load (kgf): 400 ●Wheel width (mm): 50 ●Mounting height H (mm): 241 ●Mounting seat A (mm): 114 ●Mounting seat B (mm): 102 ●Mounting hole diameter P (mm): 10 ●Mounting pitch X x Y (mm): 92 x 67 (76 x 76) ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent zinc plating ●Wheels: Cast wheels (with cover), moisture-resistant urethane
