SAMSONG Heavy-duty heat-resistant urethane wheels (maintenance-free) Fixed 125 mm TP6657R-PAL-PBB 1 pc

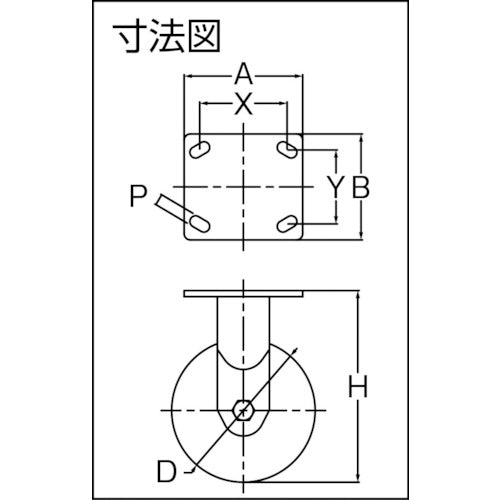

Catalog number: TP6657R-PAL-PBB Features: *High-strength precision bearings are used in the rotating section. *Excellent dustproof and waterproof performance. *Ideal for heavy loads. Applications: *Suitable for heavy load transport equipment with high durability and starting performance. Specifications: ● Wheel diameter D (mm): 138 ● Type: Fixed ● Permissible load (daN): 588 ● Permissible load (kgf): 600 ● Wheel width (mm): 50 ● Mounting height H (mm): 184.5 ● Mounting seat A (mm): 130 ● Mounting seat B (mm): 100 ● Mounting hole diameter P (mm): 11 ● Mounting pitch X × Y (mm): 76 × 105 (80 × 105) ● Plate type ● Fixed type ● Maintenance-free type ● Heat-resistant temperature: -25 to 90 °C Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: Steel wheels, heat-resistant urethane Note: ● Maintenance-free means that a sealed bearing is used and there is no need to inject grease for bearing management.
