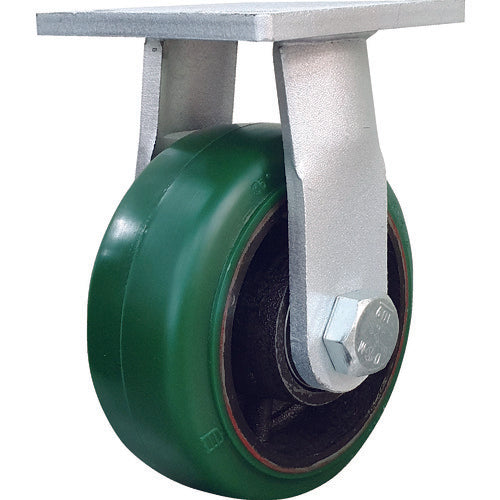

SAMSONG Forged Heavy Duty Heat Resistant Urethane Wheels Fixed 152mm TP7360R-01-PCI 1 pc

Catalog number: TP7360R-01-PCI Features: ● Made of forged steel plate, it has a highly durable structure, making it ideal for heavy loads. ● Adopts silent rotation without maintenance (equipped with bearings). ● Can be fixed in 4 directions at 90 degrees and 180 degrees ● PSL-4 (FOUR POSITION SWIVEL LOCK) ● Narrow deviation and high starting performance. Applications: ● Suitable for heavy load transport equipment with high durability and starting performance. Specifications: ● Wheel diameter D (mm): 152 ● Type: Fixed type ● Permissible load (daN): 882 ● Permissible load (kgf): 900 ● Wheel width (mm): 64 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 90 ● Mounting pitch Y (mm): 90 ● Mounting hole diameter P (mm): 12 ● Plate type ● Fixed type ● Heat resistance temperature: -25 to 90 °C Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: Cast core metal, heat-resistant urethane
