SAMSONG Heavy Duty Caster, Fixed, Heat Resistant Urethane Wheel 200mm, TP7280R-KPL-PCI, 1 Piece

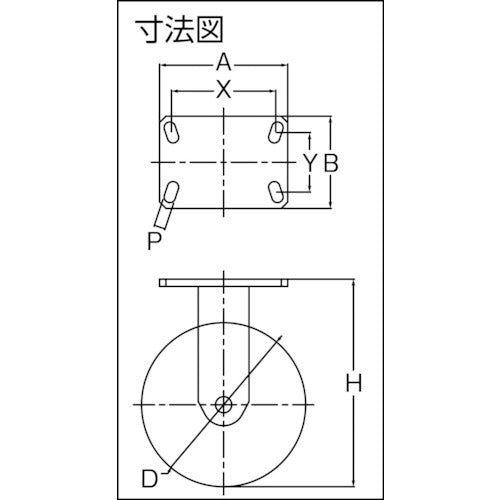

Catalog number: TP7280R-KPL-PCI Features: ● Integrated swivel plate without shaft crimping pins ● Hot forged S45C metal for excellent durability. Applications: ● Suitable for transport equipment that requires durability against vertical and horizontal impacts and dust resistance. Specifications: ● Wheel diameter D (mm): 203 ● Type: Fixed type ● Allowable load (daN): 1471 ● Allowable load (kgf): 1500 ● Wheel width (mm): 64 ● Mounting height H (mm): 257 ● Mounting seat A (mm): 159 ● Mounting seat B (mm): 114 ● Mounting hole diameter P (mm): 14 ● Mounting pitch X x Y (mm): 133 x 85 (125 x 62) ● Plate type ● Fixed type ● Heat resistance temperature (℃): -25 to 90℃ Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: Heat-resistant urethane
