SAMSONG Heavy Duty Caster, Swivel, Heat Resistant Urethane Wheel 100mm, TP7240-KPL-PCI, 1 pc

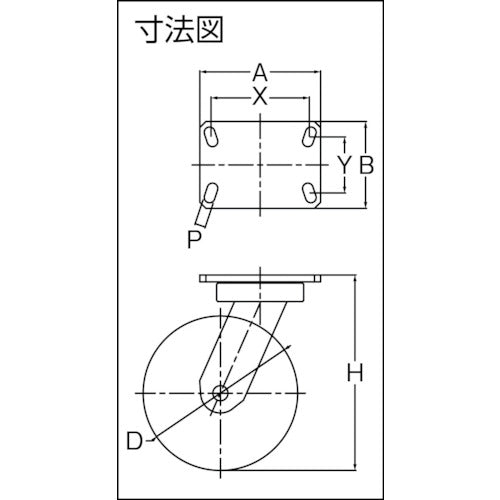

Catalog number: TP7240-KPL-PCI Features: ● Integrated swivel plate without shaft crimping pins ● Hot forged S45C metal for excellent durability. Applications: ● Suitable for transport equipment that requires durability against vertical and horizontal impacts and dust resistance. Specifications: ● Wheel diameter D (mm): 101 ● Type: Swivel ● Allowable load (daN): 980 ● Allowable load (kgf): 1000 ● Wheel width (mm): 64 ● Mounting height H (mm): 165 ● Mounting seat A (mm): 159 ● Mounting seat B (mm): 114 ● Mounting hole diameter P (mm): 14 ● Mounting pitch X x Y (mm): 133 x 85 (125 x 62) ● Plate type ● Swivel ● Heat resistance temperature: -25 to 90°C Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: Heat-resistant urethane
