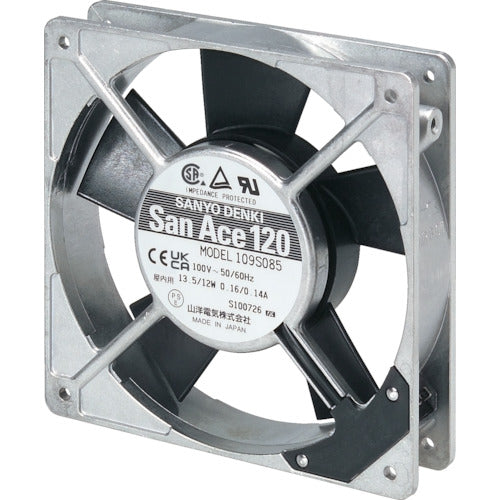

SanAce AC fan (120 x 25 mm AC 100V plug cord included) S-109S085 1 unit

Catalog number: S-109S085 Features: ● Forced air cooling of heat sources and control panels of equipment by fan blowing. ● Extends equipment life by controlling temperature rise of parts. ● Easy to operate by simply connecting AC power. (2 wires) Applications: ● Cooling of heat sources such as communication equipment, control equipment, and power supplies. ● Blowing, circulating, and diffusing air. Specifications: ● Corner size (mm): □120 ● Thickness (mm): 25 ● Rated voltage (V): AC100 ● Air volume (［［M3］］/min) 50Hz: 1.95 ● Air volume (［［M3］］/min) 60Hz: 2.3 ● Static pressure (Pa) 50Hz: 48 ● Expected life (hours): 25000 ● Static pressure (Pa) 60Hz: 51.9 ● Sound pressure level (dB(A)) 50Hz: 38 ● Sound pressure level (dB(A)) 60Hz: 41 ● Operating voltage range: Rated voltage ±10%, Operating temperature range: -30 to 60°C (no condensation) ● Protection function: Burnout protection (Limits current when blades are constrained to prevent windings from heating up) ● Definition of expected life: At rated voltage, continuous operation, and ambient temperature of 60°C, survival rate 90% Material/Finish: ● Frame: Aluminum die-cast ● Blades: Resin (PPHOX) Set contents/accessories: ● Fan motor: 109S085 ● Plug cord: 489-016-L10 ● Power supply plug cord (□ 60mm fan is not included because it is a lead wire type)
