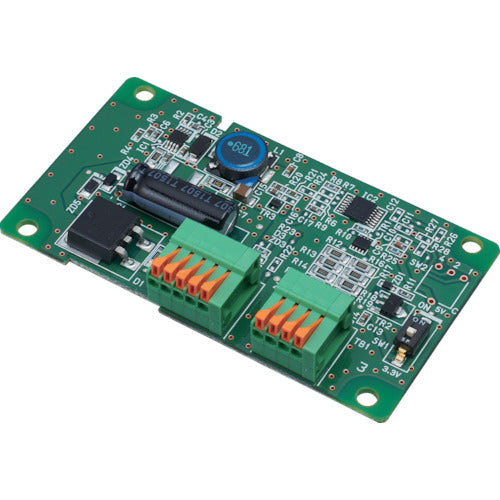

SanAce PWM Controller Board Type Variable Resistor Control 9PC8045D-R001 1 unit

Catalog number: 9PC8045D-R001 Features: ● Fans with PWM control function can be used without a new circuit design for PWM control, contributing to low power consumption and low noise of equipment. ● Can be used with the same power supply as fans with rated voltages of 12V/24V/48V. ● Up to four fans can be connected and used. Applications: ● Fan motor control, operation detection. ● Low power consumption and low noise of fan motors. Specifications: Width (mm): 45 Depth (mm): 17 Height (mm): 80 Rated voltage (V): 12/24/48 Input terminal power input range (V): 7-60 Input terminal control voltage range (V): 0-5.5 Output terminal PMW frequency (kHz): 25 Output terminal PMW signal output: 3.3V/5V selectable Output PWM signal V_OH: 3.3V/5V selectable/frequency Control function: voltage/internal adjustment (variable resistor)/external adjustment*1 (variable resistor)/thermistor*1 *1 Please prepare variable resistors and thermistors separately. Operating temperature range: -20 to 70°C Number of fans that can be connected: Maximum 4 units Installation method: Screw fastening Material/Finish: Board: FR-4
