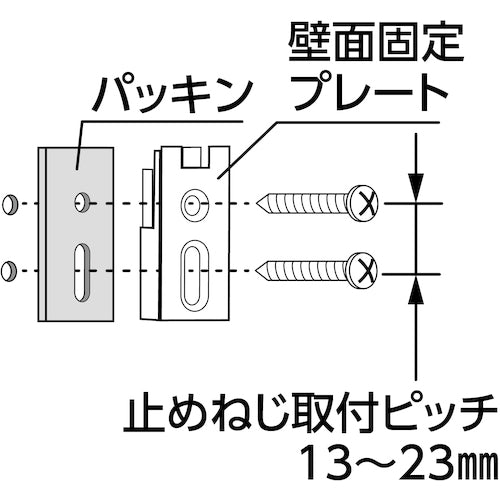

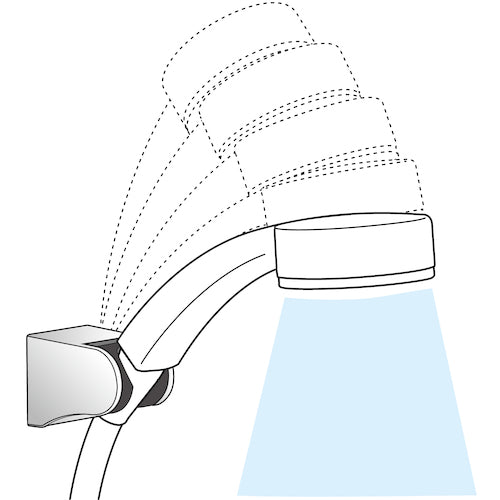

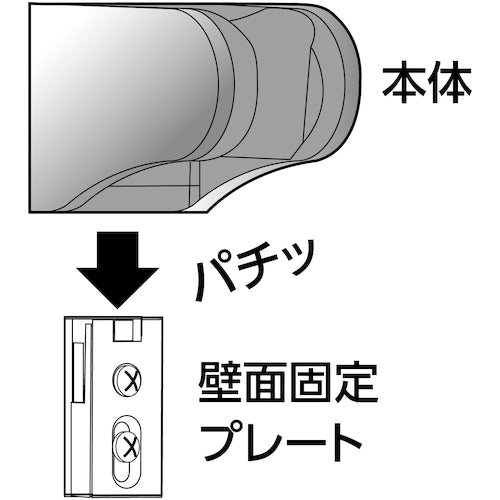

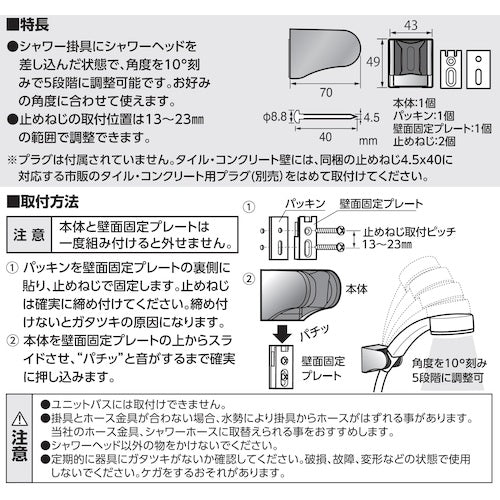

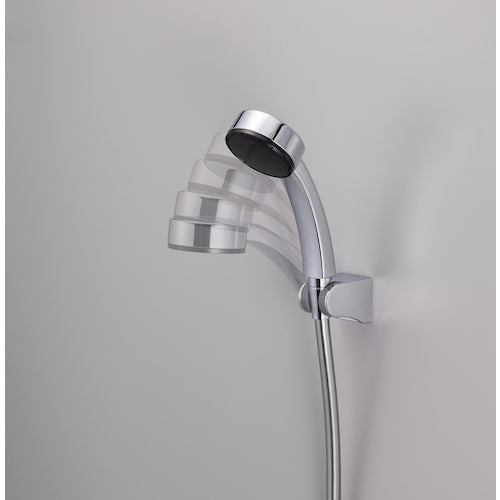

Catalog number: PS30-845 Features: ●The angle can be adjusted in 5 steps in 10° increments with the shower head inserted into the shower fixture. ●The mounting position of the set screw can be adjusted in the range of 13 to 23 mm. ●*Plug is not included. ●For tile and concrete walls, use a commercially available tile and concrete plug (sold separately) that is compatible with the included set screw 4.5 x 40. ●[Installation method] 1. Attach the packing to the back of the wall mounting plate and secure it with the set screw. ●Tighten the set screw securely. ●If not tightened, it will cause rattling. ●2. Slide the main body from the top of the wall mounting plate and push it firmly until you hear a click. Uses: ●As a shower fixture Specifications: ●Width (mm): 43 ●Height (mm): 49 ●Color: Silver Material/Finish: ●ABS resin ●Stainless steel Caution: ●Once the main body and wall mounting plate are assembled, they cannot be removed. ●Cannot be installed in a unit bath. ●If the fitting and hose metal fitting do not fit, the hose may come off the fitting due to the water pressure. ●We recommend replacing with our hose fittings and shower hose. ●Do not hang anything other than the shower head.
