(株)三桂製作所

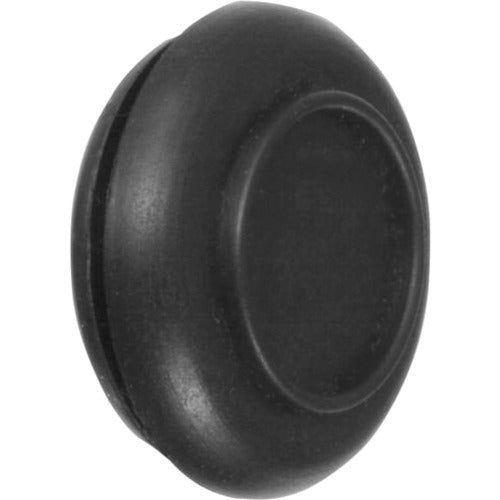

SANKEI Grommet (with membrane) HG34RG16 1 piece
SANKEI Grommet (with membrane) HG34RG16 1 piece
Regular price
¥43
Regular price
Sale price
¥43
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: HG34RG16 Features: ● One-touch installation and effective in preventing disconnection. Applications: ● For various cable wiring work, etc. ● For cutting holes in outlet boxes, etc. Specifications: ● Color: Black ● Suitable steel plate thickness (mm): 2.3 ● L1 (mm): 10.3 ● E (mm): 2.3 ● F (mm): 10.3 ● ΦA (mm): 28.0 ● ΦB (mm): 25.0 ● ΦC (mm): 21.0 ● Φd (mm): 16.0 ● L2 (mm): 2.3 ● Applicable steel plate thickness (mm): 2.3 ● Applicable knockout size: G16/C19 ● Ambient operating temperature: -20℃ to 90℃ Material/Finish: ● Ethylene propylene rubber (EPDM)
