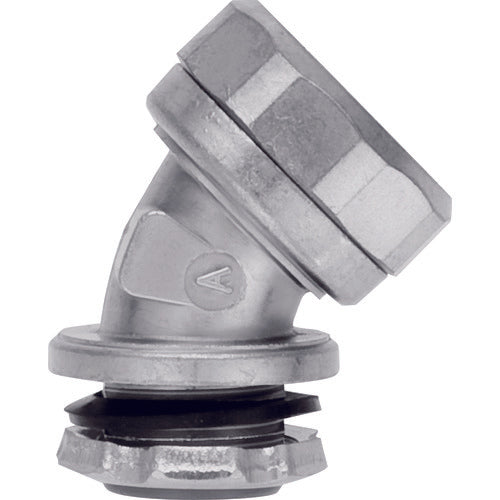

SANKEI K-Flex Connector, Knockout Connection, with Parallel Pipe Thread, 45° Type, K24BG54, 1 Piece

Catalog number: K24BG54 Features: ● Convenient for wiring at 45°. ● Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ● For knockout connection of K-Flex to control panels. Specifications: ● Type: 45° connector ● Screw size: G2 ● Dimensions (mm) A: 77.8 ● Connection screw S1 (mm): 59.6 ● Dimensions (mm) L1: 16 ● Connection screw nominal diameter: G2 ● H (mm): 49 ● Maximum outer diameter of insertable cable (mm): 48 ● Dimensions (mm) G: 25.0 ● Ambient temperature during use: -20 to 90°C ● IP65 ● Compatible K-Flex: KMS, KMV, KPF, KIC, KIV, KUU, KMB, KIB Material/Finish: ● Body: Zinc alloy die-cast Note: ● Additional shipping charges for Okinawa and remote islands
