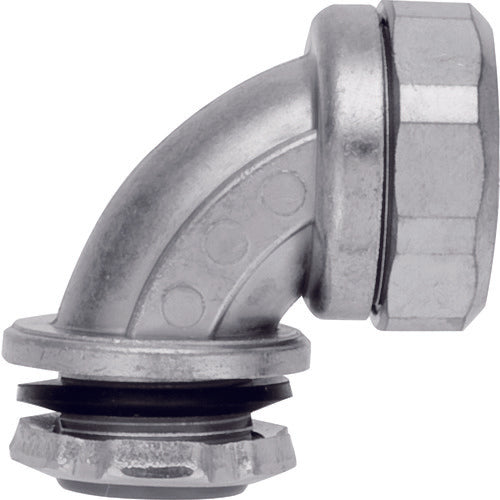

SANKEI K29BG16 Connector for Knockout Connection with Parallel Pipe Threads, 90° Type, 1 Piece

Catalog number: K29BG16 Features: ●Convenient for wiring at 90°. ●Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ●For knockout connection of K-Flex to control panels. Specifications: ●Type: 90° connector ●Screw size: G1/2 ●Dimensions (mm) A: 32.2 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 10 ●Connection screw nominal diameter: G1/2 ●Maximum insertable cable outer diameter (mm): 13 ●Dimensions (mm) E: 19.5 ●Dimensions (mm) F: 34 ●Ambient temperature during use: -20 to 90°C ●IP65 ●Compatible K-Flex: KMS/KMV/KPF/KIC/KIH/KIV/KPBF/KMB/KIB Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
