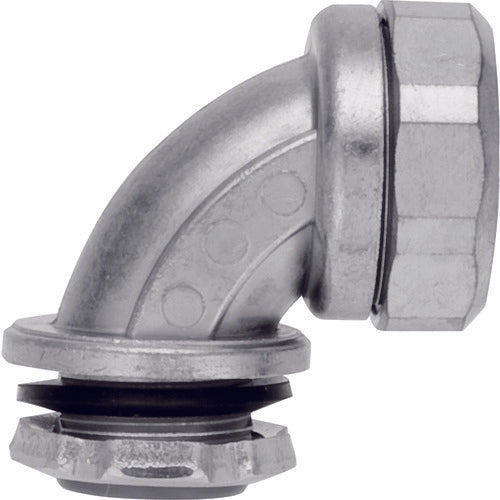

SANKEI K29BG22 Connector for Knockout Connection with Parallel Pipe Threads, 90° Type, 1 Piece

Catalog number: K29BG22 Features: ● Convenient for wiring at 90°. ● Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ● For knockout connection of K-Flex to control panels. Specifications: ● Type: 90° connector ● Screw size: G3/4 ● Dimensions (mm) A: 39.3 ● Connection screw S1 (mm): 26.4 ● Dimensions (mm) L1: 12 ● Connection screw nominal diameter: G3/4 ● Maximum insertable cable outer diameter (mm): 18 ● Dimensions (mm) E: 22.2 ● Dimensions (mm) F: 40 ● Ambient temperature during use: -20 to 90°C ● IP65 ● Compatible K-Flex: KMS/KMV/KPF/KIC/KIH/KIV/KPBF/KMB/KIB Material/Finish: ● Body: Zinc alloy die-cast Note: ● Additional shipping charges for Okinawa and remote islands
