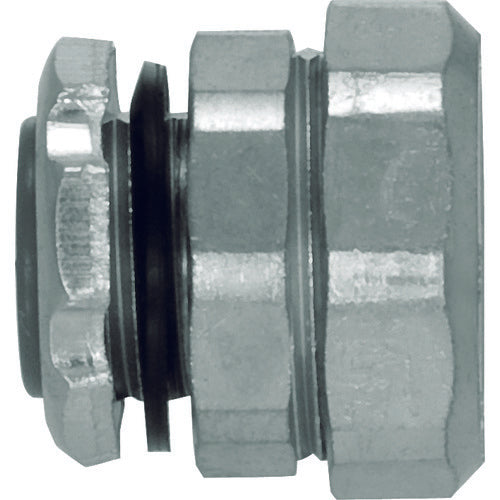

SANKEI K2BG10 Connector for K-Flex, for knockout connection, with parallel male pipe thread, 1 pc

Catalog number: K2BG10 Features: ●An insulator is attached to the wire passage, so there is no need to install an insulating bushing. Applications: ●For knockout connection of K-Flex to control panels. Specifications: ●Type: Connector (for knockout connection) ●Screw size: G1/2 ●Dimensions (mm) A: 25.9 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 12.0 ●Connection screw nominal diameter: G1/2 ●Dimensions (mm) L2: 20 ●Maximum outer diameter of insertable cable (mm): 8 ●Ambient temperature during use: -20 to 90°C ●IP65 ●Compatible K-Flex: KMS/KMV/KPF/KIC/KIH/KIV/KPBF/KMB/KIB Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
