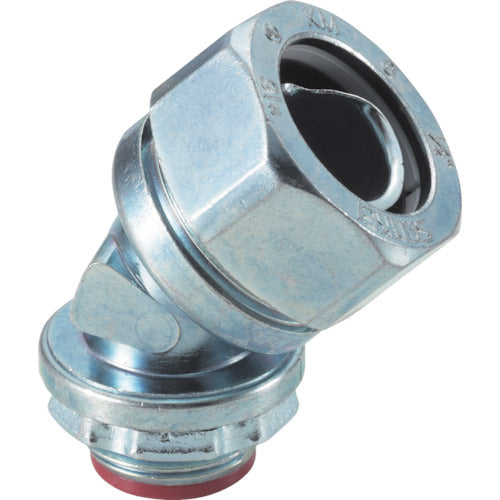

SANKEI K-Flex 45° Connector for Knockout Connection with Parallel Pipe Thread KM45BG28 1 pc

Catalog number: KM45BG28 Features: ●Since an insulator is attached to the wire passage port, there is no need to install an insulating bushing. ●Convenient when wiring at 45°. Uses: ●For knockout connection of K-Flex to control panels. Specifications: ●Type: 45° connector ●Dimensions (mm) A: 48.3 ●Connection screw S1 (mm): 33.2 ●Dimensions (mm) L1: 14.0 ●Connection screw nominal diameter: G1 ●H (mm): 33 ●Maximum insertable cable outer diameter (mm): 23 ●Dimensions (mm) G: 14.5 ●Ambient temperature during use: -20 to 90°C ●UL standard product ●IP67 ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
